ASTM A105 Floating Ball Valve, ISO 17292, 1/2IN, 800 LB, NPT

Name: ASTM A105 Floating Ball Valve, ISO 17292, 1/2IN, 800 LB, NPT
Brand: www.bossealvalves.com
SKU: 0.5BB8NA105N
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 0.5BB8NA105N

Key Specifications / Features

Get reliable performance with our 1/2 inch, 800 LB Floating Ball Valve. Designed with NPT Threaded End and ISO 17292 standards, this valve features an A105 body with 316 Trim, RPTFE seat, and lever operation. Explore our high-quality valve for optimal functionality and durability.v

API 6D Ball Valve API 608 Ball Valve ASTM A105 Ball Valve ISO 17292 Ball Valve Class 800 LB Ball Valve DN15 Ball Valve 1/2 Inch Ball Valve PN130 Ball Valve NPT Ball Valve

Detail Information

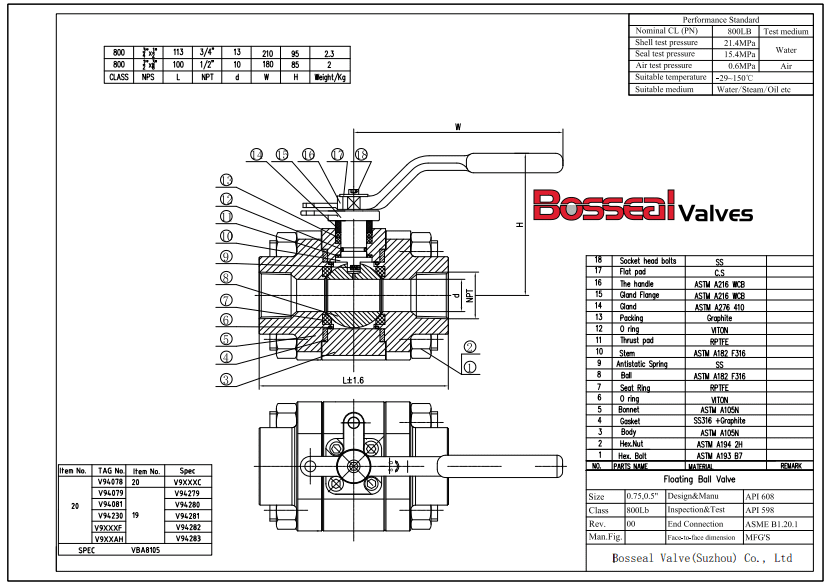

1/2 inch, 800 LB, Floating Ball Valve, NPT Threaded End, ISO 17292, A105 body with 316 Trim, RPTFE seat and lever operation

Valve Description:
1812008 Floating Ball Valve 0.5BB8NA105N
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1/2 Inch
Nominal class: 800 LB
Bore Type: Reduced Bore
End Connection: NPT/BSP
Operation: Lever Lockable
Body Material: ASTM A105
Trim Material: ASTM A182 F316, RPTFE
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
