ASME B16.34 Y Globe Valve, 1 Inch, 2680 LB, ASTM A182 F11
Key Specifications / Features
Looking for an ASME B16.34 Y Globe Valve Supplier? Look no further! Our 1-inch valve, rated at 2680 pounds, with a DN25 size, and crafted from ASTM A182 F11 material, is the ideal solution. Featuring F6A + STL Trim 5, API 602 compliance, a Pressure Seal Bonnet, OS & Y design, and a convenient Handwheel operation, this valve is perfect for your needs. Get superior performance and reliability with our SW valve option.
Request a quote
Detail Information

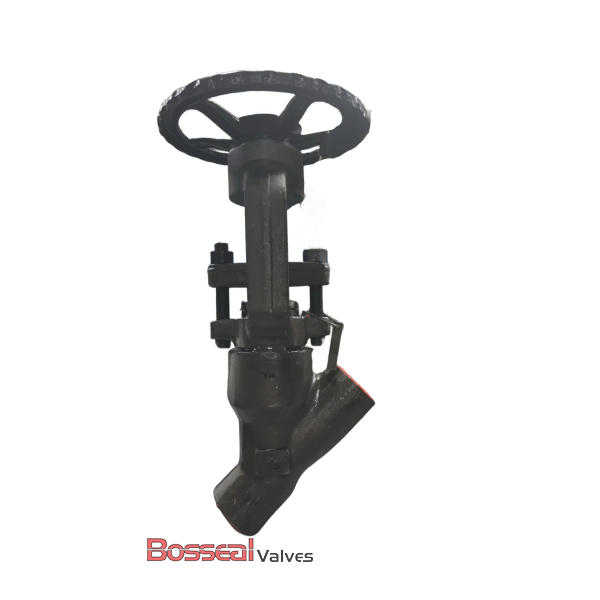

Forged Y Pattern Globe Valve, API 602, 1 INCH, 2680 LB, SW End, F11 Body, Trim 5, Handwheel
Valve Description:
1852032 API 602 Forged Globe Valve 1GLY26SF1105
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS & Y, Y pattern
Nominal size: 1 Inch
Nominal class: 2680 LB
Bore: Regular Bore
End Connection: SW
Operation: Handwheel
Body Material: ASTM A182 F11
Trim Material: F6A+STL, No.5
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc (parabola disc available), for power plant, steam, high temperature
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +500℃
Operation: Handwheel
Valve Description:
1852032 API 602 Forged Globe Valve 1GLY26SF1105
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS & Y, Y pattern
Nominal size: 1 Inch
Nominal class: 2680 LB
Bore: Regular Bore
End Connection: SW
Operation: Handwheel
Body Material: ASTM A182 F11
Trim Material: F6A+STL, No.5
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc (parabola disc available), for power plant, steam, high temperature
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +500℃
Operation: Handwheel
