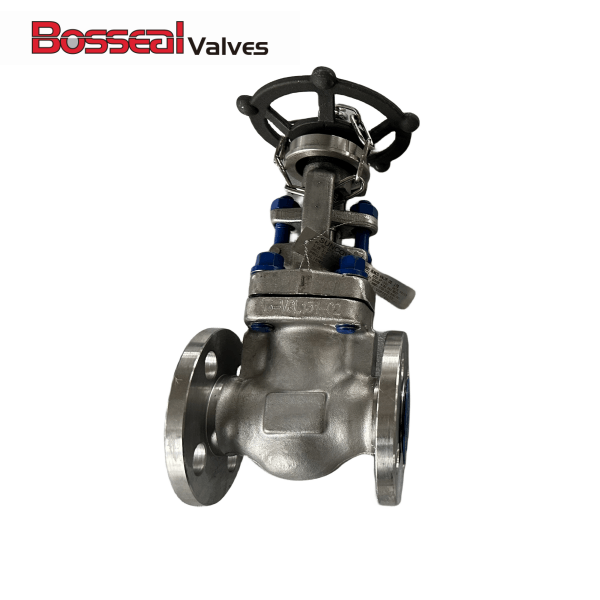

ASME B16.34 Flanged Gate Valve, 2 Inch, 150 LB, API 602

Name: ASME B16.34 Flanged Gate Valve, 2 Inch, 150 LB, API 602
SKU: 2G1RA10512
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Looking for a reliable RF Integral Flanged Gate Valve provider? We offer a top-notch 2 Inch, 150 LB, DN50, PN20 valve that meets API 602 and ASME B16.34 standards. Made from ASTM A182 F316 material, this valve features a Fully Guided Solid Wedge and Trim 12. Trustworthy and efficient, our RF Integral Flanged Gate Valve with RF End is the ideal choice for your industrial needs.

Request a quote

Detail Information

Integral Flanged Forged Gate Valve, API 602, 2 INCH, 150 LB, RF F316 Body & Trim 12, Handwheel

Valve Description:
1851026 API 602 Forged Gate Valve 2G1RA10512
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 2 Inch
Nominal class: 150 LB
Bore: Regular Bore
End Connection: RF-Integral Flange
Operation: Handwheel
Body Material: ASTM A182 F316
Trim Material: ASTM A182 F316+STL.6
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland, Integral Flange

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 150-2500 LB
End connection: RF, RTJ
Working temperature: -29℃ - +400℃
Operation: Handwheel
