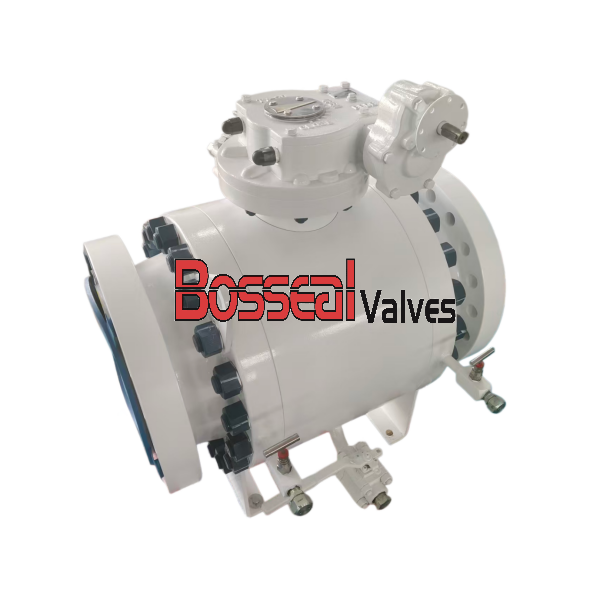

API 6D Three Piece Ball Valve, A105, A105N, 12 IN, CL600

Name: API 6D Three Piece Ball Valve, A105, A105N, 12 IN, CL600
Brand: www.bossealvalves.com
SKU: 181101003
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 181101003

Key Specifications / Features

We supply an API 6D three-piece DBB ball valve in 12-inch DN300, class 600 LB PN100, with a full-bore design. The valve body adopts ASTM A105 or ASTM A105N forged steel, manufactured to the ASME B16.34 standard. This double block and bleed ball valve delivers reliable bubble-tight sealing for pipeline isolation and venting. It suits oil, gas, and petrochemical services, with full material test certificates and pressure tests to guarantee long-term stable operation.

3PC Ball Valve API 6D Ball Valve ASTM A105 Ball Valve ASTM A105N Ball Valve 12 Inch Ball Valve Class 600 LB Ball Valve ASME B16.34 Ball Valve

Detail Information

Valve type: Trunnion-mounted ball valve
Structure: Three-piece bolted body
Operation: Worm gear-operated
Bore type: Full bore
Seat function: Double block and bleed
Design standard: API 6D, ASME B16.34
Flange standard: ASME B16.5
Face-to-face dimension: API 6D
Pressure class: Class 600 LB, PN100
Nominal size: NPS 12, DN300
Body material: ASTM A105, ASTM A105N
Ball material: ASTM A182 F304, ASTM A182 F316, Hard facing optional
Seat material: PTFE, RPTFE, PEEK, Devlon, metal-to-metal optional
Stem material: ASTM A182 F316
Bolt and nut: ASTM A193 B7, ASTM A194 2H
Operating temperature: -29 Deg C to +180 Deg C, cryogenic version available
End connection: Flanged end
Feature: Body cavity relief, seat sealant injection port
Application: Natural gas, oil, pipeline, process pipeline
Inspection and test: API 6D
Painting: Epoxy coating
Feature: Body cavity relief, seat sealant injection port
