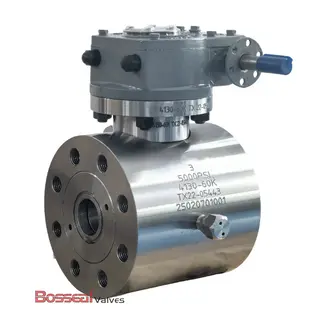

API 6D Forged Ball Valve, A694 F65, 2-1/16 IN, Inconel Trim

Name: API 6D Forged Ball Valve, A694 F65, 2-1/16 IN, Inconel Trim
SKU: CBV-181105065
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading forged ball valve factory in China, we supply high-performance valves engineered to API 6D standards. Featuring robust ASTM A694 F65 bodies and precision 17-4PH or Inconel trims, these valves deliver exceptional strength, reliability, and long service life. Designed in a 2-1/16 inch size and rated for 2500 PSI, they offer superior sealing performance with options for soft seats or metal seats. RTJ end connections ensure secure integration with high-pressure piping systems. Ideal for demanding industrial applications, these forged ball valves provide efficient flow control, consistent operation, and durability under extreme pressure conditions.

Request a quote

Detail Information

Valve Description:
181105065 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 Inch - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
