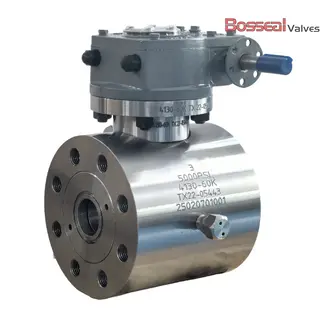

API 6D Compact Ball Valves, AISI 4130, 3-1/8 Inches, RTJ/BW

Name: API 6D Compact Ball Valves, AISI 4130, 3-1/8 Inches, RTJ/BW
SKU: BV-181105047
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading Compact Ball Valve Supplier in China, we provide high-quality ball valves engineered for demanding industrial and oilfield applications. Our valves feature a robust AISI 4130 body paired with 4140 or F51 trim, ensuring excellent strength, durability, and corrosion resistance. Designed to meet API 6D and API 6A standards, they are rated for 5000 PSI and sized at 3-1/8 inches. With versatile end connections including RTJ and butt-weld, and multiple operation options such as lever, gear, or actuated, these compact ball valves deliver precise flow control, reliable sealing, and long-term performance in critical pipeline systems.

Request a quote

Detail Information

Valve Description:
181105047 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
