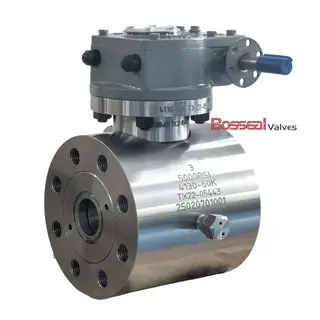

API 6D Compact Ball Valve, 4130, 6-3/8 IN, RTJ, Metal Seated

Name: API 6D Compact Ball Valve, 4130, 6-3/8 IN, RTJ, Metal Seated
SKU: BV-181105105
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading compact ball valve supplier in China, we provide high-performance valves engineered for demanding oil and gas applications. Our valves are designed to meet API 6D standards and feature durable AISI 4130 or ASTM A694 F60 bodies, ensuring exceptional strength and reliability under high-pressure conditions. Equipped with 17-4PH or Inconel metal trim, these 6-3/8 inch valves deliver superior wear resistance and precise flow control. Rated for 10,000 PSI, they are available with RTJ or butt-weld ends for flexible installation. Our metal-seated design ensures long-term durability, safety, and consistent operational performance in critical pipelines.

Request a quote

Detail Information

Valve Description:
181105105 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
