API 6D Ball Valves, F60/F65, 1-13/16 Inch, 2500 PSI, Forged

Name: API 6D Ball Valves, F60/F65, 1-13/16 Inch, 2500 PSI, Forged
SKU: CBV-181105064
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading forged ball valve manufacturer in China, we offer high-performance valves designed to meet API 6D and API 6A standards. Crafted with rugged ASTM A694 F60 or A694 F65 bodies and precision-engineered 17-4PH or Inconel trims, these valves ensure exceptional durability and reliable operation. Available in 1-13/16 inch size and rated up to 2500 PSI, they provide superior sealing performance with options for soft seats or metal seats. End connections include RTJ and Butt Weld (BW), making them suitable for demanding industrial applications. These forged ball valves deliver efficient flow control, long service life, and consistent high-pressure performance.

Request a quote

Detail Information

Valve Description:

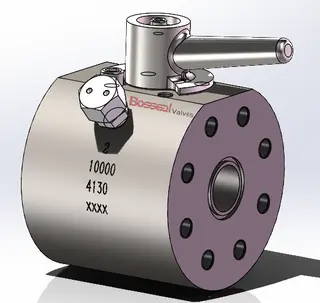

181105064 Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1PC Body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face-to-face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque, and it is easy to repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
