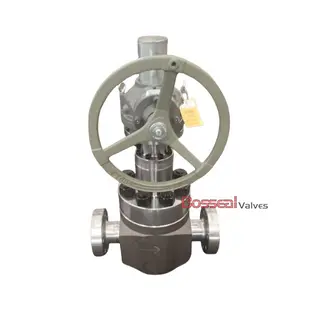

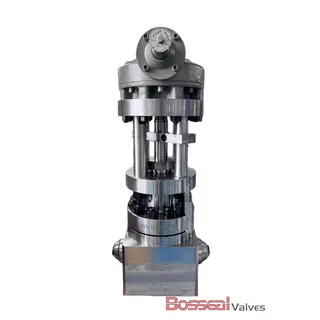

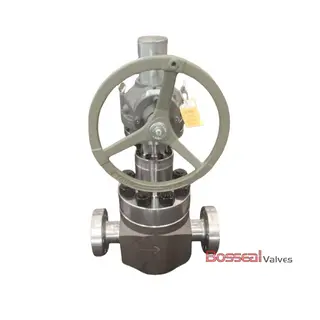

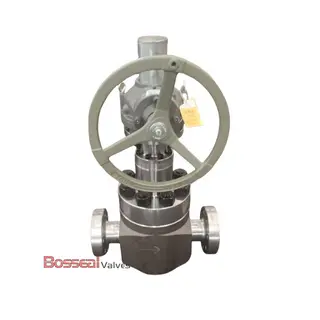

API 6A Globe Valves, 6 Inch, A694 F60/F65, Inconel Trim, RTJ

Name: API 6A Globe Valves, 6 Inch, A694 F60/F65, Inconel Trim, RTJ
SKU: GLV-183103031
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading API 6A globe valves supplier in China, we provide durable and precision-engineered valves designed for critical oil and gas applications. Our 6-inch globe valves are rated for 10,000 PSI and constructed with high-strength ASTM A694 F60/F65 body materials to ensure exceptional reliability in demanding environments. The trim options of 17-4PH stainless steel or Inconel deliver superior resistance to corrosion and wear. Available with RTJ or butt-weld (BW) ends, these valves ensure secure connections. With gear operation, PSL to PSL3G compliance, and PR2 testing, they guarantee dependable performance and long service life.

Request a quote

Detail Information

Valve Description:
183103031 API 6A Globe Valve
Design Standard: API 6A
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2,000 PSI-15,000 PSI
Bore Type: Standard
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/ASTM A694 F65/Inconel
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: TCC or STL Hardfaced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A

Key Features:
Material Class: AA, BB, CC, DD, EE, FF, HH
Temperature Class: L, N, P, S, T, U, V, X, Y
Specification: PSL1 - PSL3G
Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2,000 PSI - 15,000 PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +400°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
