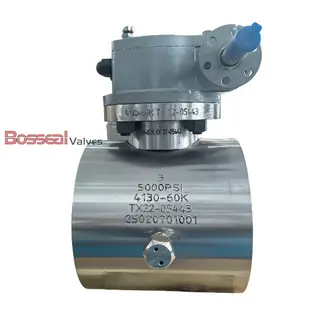

API 6A Forged Ball Valves, API 6D, AISI 4130, 6-3/8 IN, RTJ

Name: API 6A Forged Ball Valves, API 6D, AISI 4130, 6-3/8 IN, RTJ
SKU: BV-181105012
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading forged ball valve supplier in China, we specialize in high-performance valves designed to meet API 6A and API 6D standards for critical applications. Our valves feature robust AISI 4130 or F65 bodies paired with durable AISI 4140 or F51 trims, ensuring long-lasting reliability under high pressure. Available in 6-3/8 inch sizes and rated up to 2000 PSI, they offer versatile connection options including RTJ and butt-weld (BW) ends. With ISO 5211 mounting pads, these valves support manual lever, gear, or automated actuation, delivering precise, safe, and efficient flow control across demanding industrial environments.

Request a quote

Detail Information

Valve Description:
181105012 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Body Material: AISI 4130/ASTM A694 F60/F65
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced

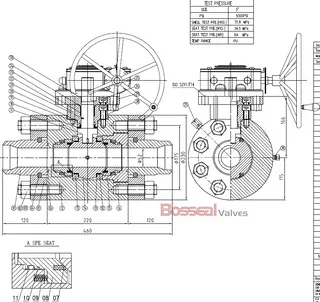

Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
