Key Specifications / Features
Shop high-quality Triple Offset Butterfly Valves from a leading manufacturer. Our valves are designed to meet API 609 Cat B, EN 593 standards and feature a size of 36 inches. With a Class 150 LB rating and DN900 specifications, these valves are built to handle demanding applications. The PN20 pressure rating and metal seat with a double flange ensure reliable performance. Equipped with an SS + Graphite Sealing Ring, our valves provide excellent sealing capabilities. Trust our expertise for top-notch butterfly valves that deliver exceptional performance.
Request a quote
Detail Infomation

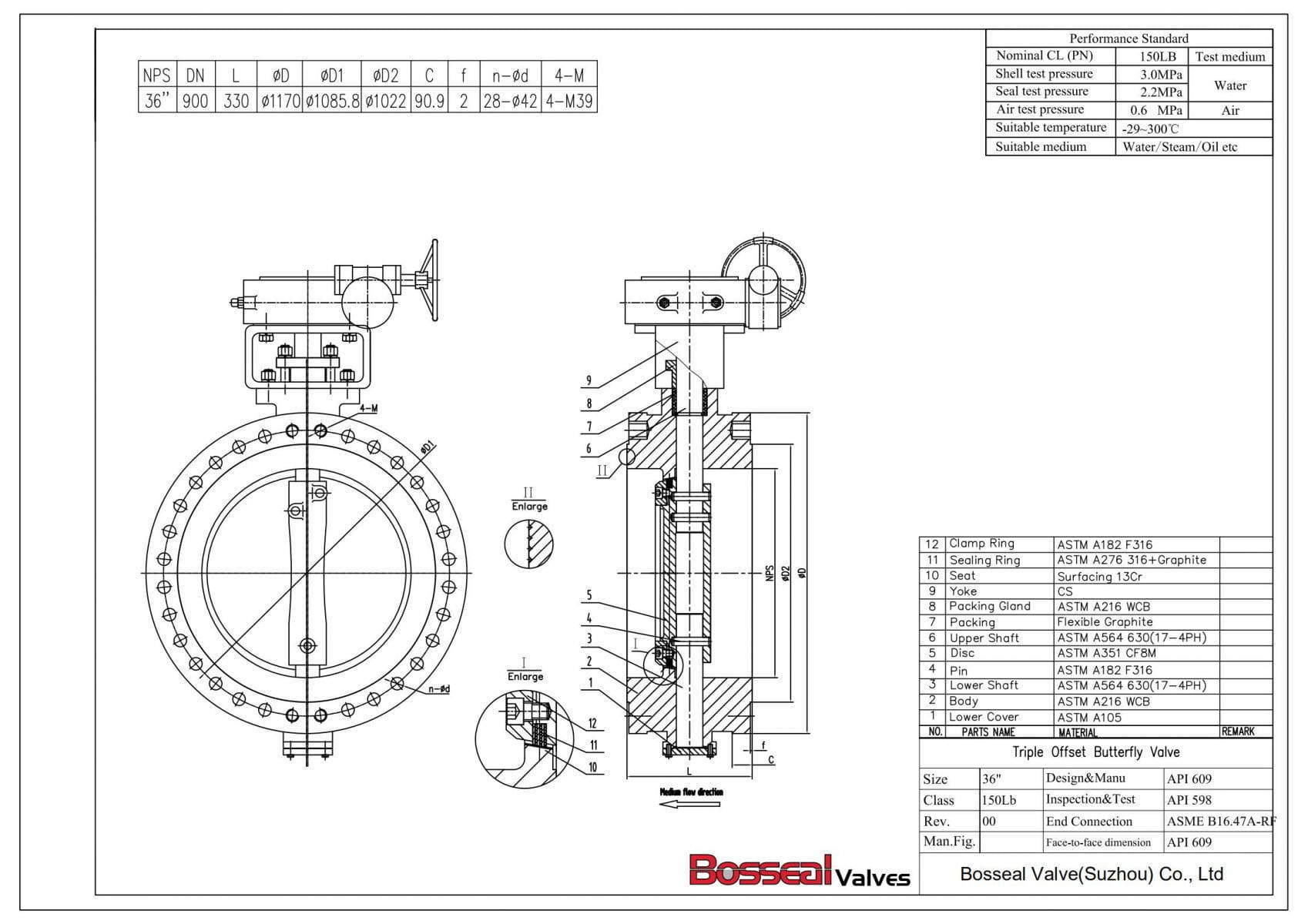

36 inch (DN900) Triple Offset Butterfly Valve, Metal Seat, API 609, EN 593, 150 LB, Double Flange, WCB body, CF8M Disc, SS + Graphite Sealing Ring, CR13 Overlay Seat, Gear Operation
Valve Description:
1863003 Triple Offset Butterfly Valve 36TC1RWCB
Design Standard: API 609 Cat B, EN 593
Structure: Triple Offset
Nominal size: 36 Inch
Nominal class: 150 LB
End Connection: Double Flange-ASME B16.47 Series A
Operation: Gear
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, Laminated Sealing ring SS 316 + Graphite
Face to face: API 609
Test and inspection: API 598
Key Features: Metal Seat for high Temperature and various fluids, Low torque, Replaceable seat, Zero Leakage, Excellent control characteristics, Fire Safe
Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, BW
Working temperature: -29℃ - +400℃
Operation: Lever, Gear, Motor, Pneumatic Actuated
Valve Description:
1863003 Triple Offset Butterfly Valve 36TC1RWCB
Design Standard: API 609 Cat B, EN 593
Structure: Triple Offset
Nominal size: 36 Inch
Nominal class: 150 LB
End Connection: Double Flange-ASME B16.47 Series A
Operation: Gear
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, Laminated Sealing ring SS 316 + Graphite
Face to face: API 609
Test and inspection: API 598
Key Features: Metal Seat for high Temperature and various fluids, Low torque, Replaceable seat, Zero Leakage, Excellent control characteristics, Fire Safe
Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, BW
Working temperature: -29℃ - +400℃
Operation: Lever, Gear, Motor, Pneumatic Actuated
