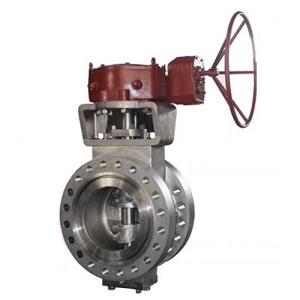

API 609 Triple Offset Butterfly Valve, 16 Inch, 300 LB, WCB

Name: API 609 Triple Offset Butterfly Valve, 16 Inch, 300 LB, WCB
Brand: www.bossealvalves.com
SKU: 16TC3RWCB
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 16TC3RWCB

Key Specifications / Features

We Provide Triple Offset Butterfly Valves, ASTM A216 WCB, 16 Inch, Class 300 LB, Double Flanged Ends, API 609 Cat B, Gear Operation, CF8M Disc, and Metal Seat.

API 609 Butterfly Valve Class 300 LB Butterfly Valve PN50 Butterfly Valve ASTM A216 WCB Butterfly Valve API 609 Cat B Butterfly Valve 16 Inch Butterfly Valve DN400 Butterfly Valve Triple Offset Butterfly Valves Double Flanged Butterfly Valve

Detail Information

16-inch Bi-Direction API 609 Metal Seat Triple Offset Butterfly Valve, 16 Inch, 300 LB, Double Flange, WCB body, CF8M Disc, UNS 31803+Graphite Sealing Ring, STL.21 Overlay Seat

Valve Description:
Triple Offset Butterfly Valve
Design Standard: API 609 Cat B
Structure: Triple Offset
Nominal size: 16 Inch, DN400
Nominal class: 300 LB, PN50
End Connection: Double Flange
Operation: Gear
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, Laminated Sealing ring F51+Graphite
Face to face: API 609
Test and inspection: API 598
Key Features: Metal Seat for High Temperature and various fluids, Low torque, Replaceable seat, Zero Leakage, excellent control characteristics, Fire Safe, Bi-direction

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, BW
Working temperature: -29℃ - +400℃
Operation: Lever, Gear, Motor, Pneumatic Actuated
