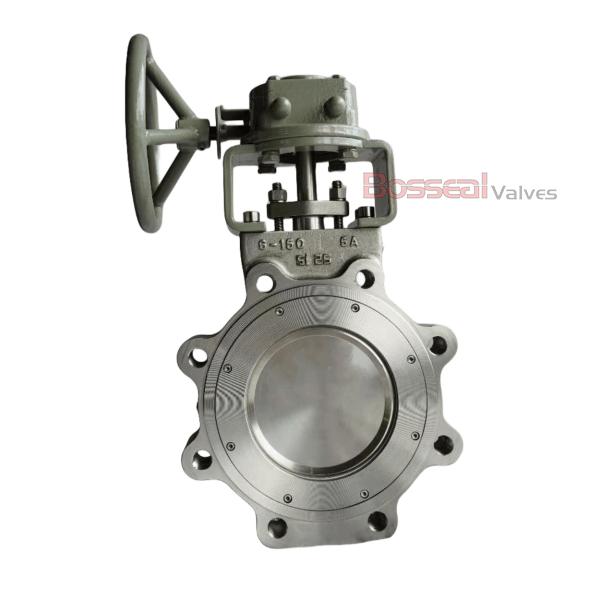

API 609 Titanium Alloy Butterfly Valve, 4IN, CL150, Flanged
Model Number: 1862372
Key Specifications / Features
As a premier provider of API 609 Category B butterfly valves, we offer high-performance solutions featuring a double offset and double eccentric design. Our valves, measuring 4 inches and rated for CL 150 LB, are constructed with a Monel K500 stem and a titanium alloy body for superior durability. Equipped with an RPTFE seat, these valves comply with EN 593 standards, ensuring reliable performance in demanding environments. The advanced materials and design features guarantee long-lasting operation and resistance to wear.
Detail Information
API 609 Soft Seated Butterfly Valve, 4 Inch/DN100, Class 150 LB, RPTFE Seat, Flanged.
Design Standard: API 609 Category B, EN 593
Body Material: Titanium Alloy, ASTM B148 C95800, ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8, ASTM A216 WCB, ASTM A351 CF8M.
Nominal Size: 4 Inch, DN100
Nominal Class: CL 150 LB, PN16
Seat Type: Soft Seat
Operation: Lever
Seat: RPTFE, PPL
End Connection: Double Flanged
Structure: Double Offset, Double Eccentric
Trim Material: ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800, Titanium
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150/300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
Valve Description
1862372 High-Performance Butterfly ValveDesign Standard: API 609 Category B, EN 593
Body Material: Titanium Alloy, ASTM B148 C95800, ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8, ASTM A216 WCB, ASTM A351 CF8M.
Nominal Size: 4 Inch, DN100
Nominal Class: CL 150 LB, PN16
Seat Type: Soft Seat
Operation: Lever
Seat: RPTFE, PPL
End Connection: Double Flanged
Structure: Double Offset, Double Eccentric
Trim Material: ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800, Titanium
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150/300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
