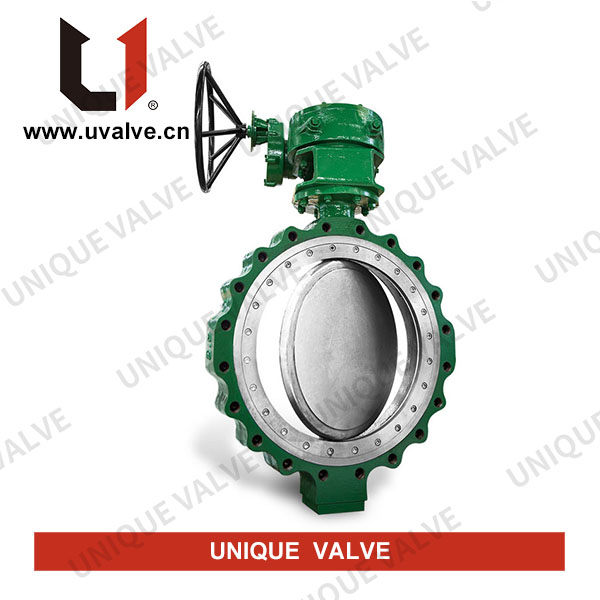

API 609 Lug Butterfly Valve, ASTM A890 5A, 32 IN, 150 LB
Model Number: 1862091
Key Specifications / Features
As a top butterfly valve provider in China, we specialize in duplex stainless steel butterfly valves crafted to API 609 Category B and EN 593 standards. Constructed from ASTM A890 5A, these 32-inch, 150 LB valves feature an RPTFE seat and a 17-4PH stem. The lug end design ensures a secure installation. Our Bosseal valves excel with zero leakage, low torque, extended lifespan, low emissions, bi-directional flow, and fire-safe operation. Perfect for demanding applications, these valves offer exceptional reliability, efficiency, and durability.
Detail Information
Double Eccentric Wafer Butterfly Valve, 32 Inch/DN800, 150 LB, ASTM A890 5A Body, Gear Operation.
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Valve Description
A double offset butterfly valve is widely used in the pipeline for isolation and regulating applications especially where request frequent open/close.| 1862091 High-Performance Butterfly Valve | |
| Design Standard: | API 609 Category B, EN 593 |
| Structure: | Double Offset, Double Eccentric |
| Body Material: | ASTM A890 5A, ASTM A216 WCB, ASTM B148 C95800, ASTM A351 CF8M, ASTM A351 CF8, ASTM A890 4A, Titanium. |
| Nominal Size: | 32 Inch, DN800 |
| Nominal Class: | Class 150 LB, PN20 |
| Seat Type: | Soft Seat |
| Operation: | Gear |
| Seat: | RPTFE, PPL |
| End Connection: | Lug |
| Trim Material: | ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
| Face to Face: | API 609, EN 593 |
| Test and Inspection: | API 598, API 609 |
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
