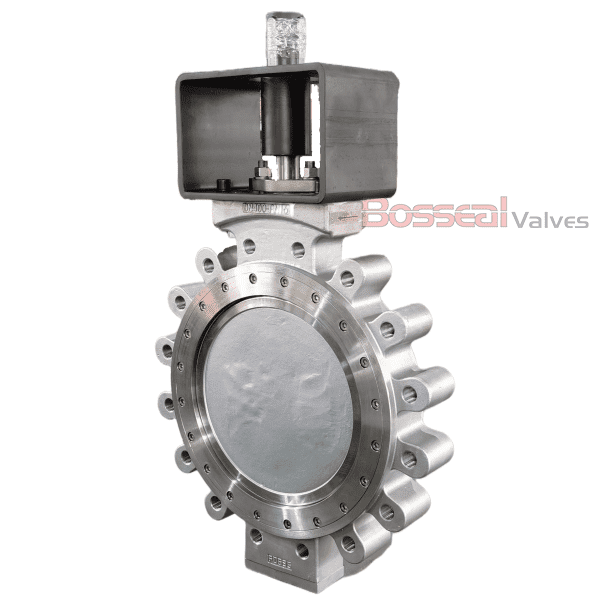

API 609 Double Offset Butterfly Valve, Titanium, 30IN, 300 LB
Model Number: 1862153
Key Specifications / Features
As a leading manufacturer of high-performance butterfly valves, we provide products designed to API 609 B and EN 593 standards. Our 30-inch, CL 300 LB valves feature a double offset design for enhanced control and durability. Constructed from titanium, these valves offer superior strength and corrosion resistance. The RPTFE seat ensures a tight seal, while the 17-4PH stem provides exceptional performance. With double-flanged ends for easy installation, these valves are engineered for reliability and efficiency in demanding industrial applications.
Detail Information

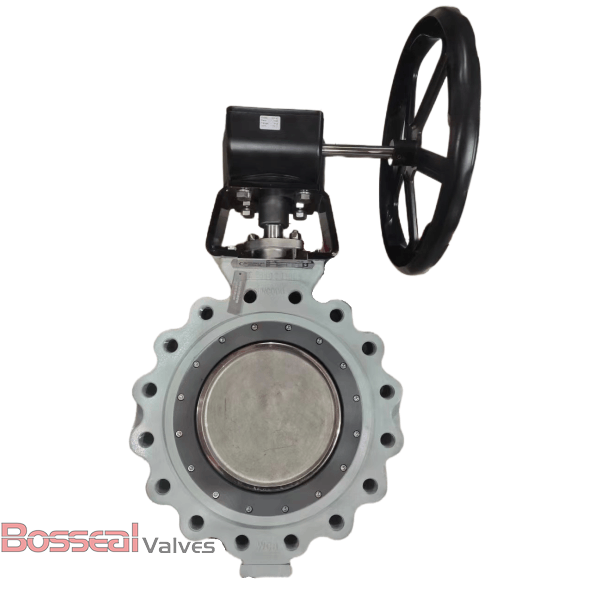

RPTFE Seated Butterfly Valve, Double Offset, 30 Inch/DN750, Class 300 LB, Gear Operation.
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Valve Description
A double offset butterfly valve is extensively used in pipelines for isolation and flow regulation, particularly in applications that demand frequent opening and closing.| 1862153 High-Performance Butterfly Valve | |
| Design Standard: | API 609 Category B, EN 593 |
| Structure: | Double Offset, Double Eccentric |
| Body Material: | Titanium, ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M. |
| Nominal Size: | 30 Inch, DN750 |
| Nominal Class: | Class 300 LB, PN50 |
| Seat Type: | Soft Seat |
| Test and Inspection: | API 598, API 609 |
| Trim Material: | ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
| Face to Face: | API 609, EN 593 |
| Operation: | Gear |
| Seat: | RPTFE, PPL |
| End Connection: | Double Flanged |
| Key Features: | Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available. |
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumOperation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
