API 609 Double Offset Butterfly Valve, 6 Inch, 300 LB, WCB

Name: API 609 Double Offset Butterfly Valve, 6 Inch, 300 LB, WCB
Brand: www.bossealvalves.com
SKU: 6TB3WWCB
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 6TB3WWCB

Key Specifications / Features

We Provide API 609 Double Offset Butterfly Valves, 6 Inch, Class 300 LB, API 609 Cat B, ASTM A216 WCB, Wafer-RF End, Bare Stem, ISO 5211 Mounting, CF8M Disc.

6 Inch Butterfly Valve Wafer Butterfly Valve DN150 Butterfly Valve Double Offset Butterfly Valves Class 300 LB Butterfly Valve PN50 Butterfly Valve RF Butterfly Valve ASTM A216 WCB Butterfly Valve API 609 Cat B Butterfly Valve

Detail Information

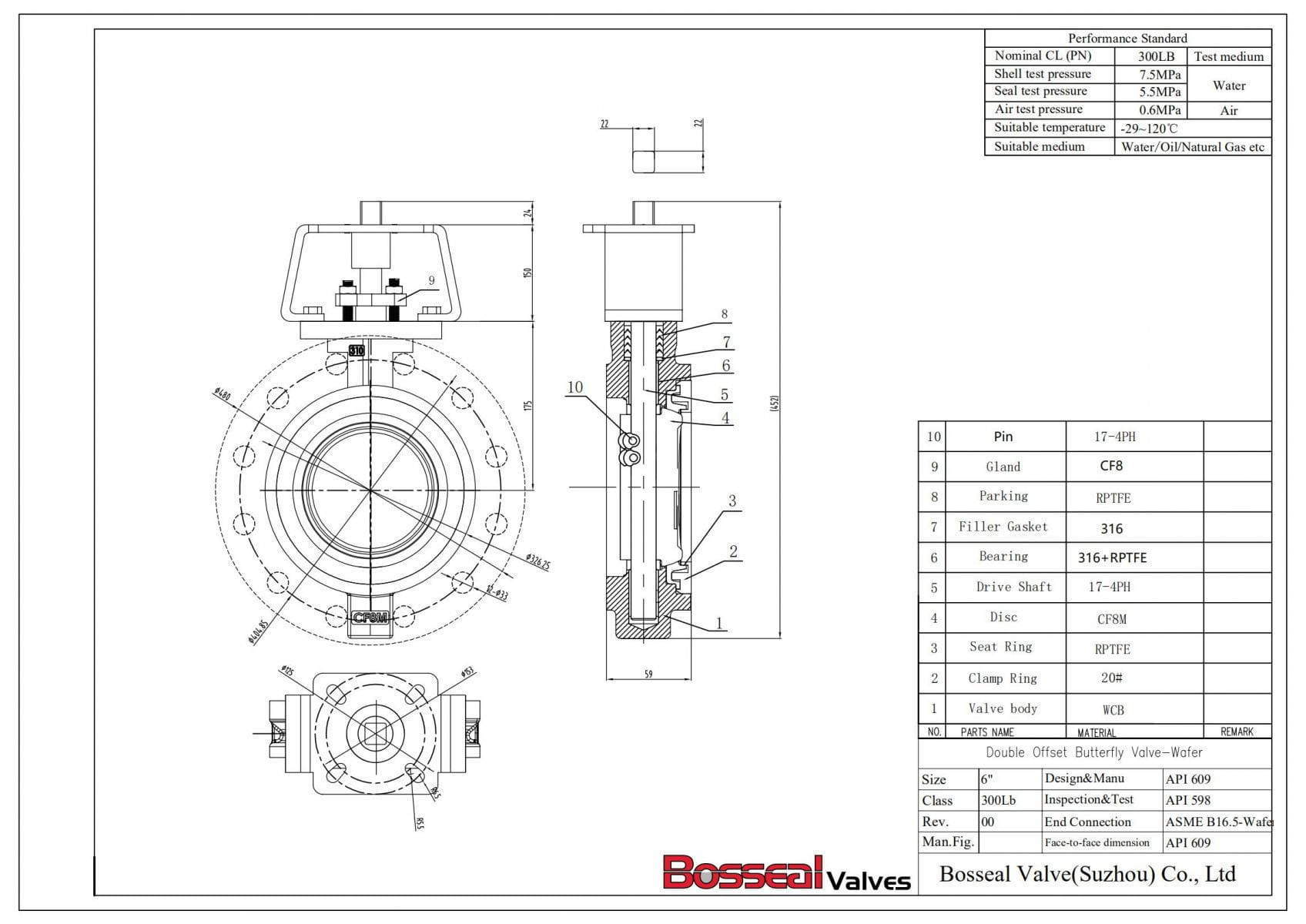

ISO 5211 Mounting WCB Double Offset Butterfly Valve, High Performance, API 609, 6 Inch, 300 LB, Wafer, CF8M Disc, RPTFE seat

Valve Description:
Double Offset Butterfly Valve
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 6 Inch, DN150
Nominal class: 300 LB, PN50
End Connection: Wafer-RF
Operation: Bare Stem, ISO 5211 Mounting
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/closing (million cyclings), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
