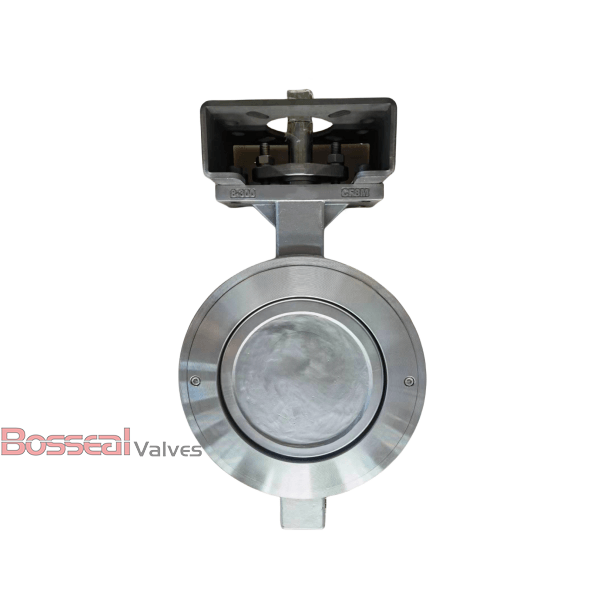

API 609 B Stainless Steel Butterfly Valve, CL300, 16IN, CF8
Key Specifications / Features
As China's leading double offset butterfly valve manufacturer, we produce high-performance valves designed to meet API 609 Category B and EN 593 standards. Our 16-inch, Class 300 LB valves feature a durable ASTM A351 CF8 body with a 17-4PH stem and flanged ends. The double eccentric design ensures tight sealing, low torque, and excellent control characteristics, with bi-directional sealing under full pressure. Built for frequent operation, these valves offer a long working life, replaceable seats, and fire-safe seat options, making them ideal for demanding industrial applications.
Request a quote
Detail Information
On this page
RPTFE Seated Butterfly Valve, Double Offset, 16 Inch/DN400, Class 150 LB, Gear Operation.
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A351 CF8, ASTM B148 C95800, Titanium, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 4A.
Nominal Size: 16 Inch, DN400
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, ASTM A351 CF8, ASTM B148 C95800, Titanium
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Double Flanged
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Valve Description
1862273 High-Performance Butterfly ValveDesign Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A351 CF8, ASTM B148 C95800, Titanium, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 4A.
Nominal Size: 16 Inch, DN400
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, ASTM A351 CF8, ASTM B148 C95800, Titanium
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Double Flanged
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Product Range
| Body Material: | Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium |
| Operation: | Manual (lever, gear), Pneumatic Actuator, Motor Actuator |
| Normal Diameter: | 1/2 - 48 Inches (DN15 - DN1200) |
| Pressure Range: | Class 150 - 300 LBS |
| Working Temperature: | -26°C - +120°C (180°C for PPL seat) |
| End Connection: | Wafer, Lug, Flanged(FF, RF, RTJ) |
| Seat Type: | PTFE, RPTFE, PPL(for higher temperature), RPTF |
