API 608 Floating Ball Valve, ASTM A216 WCB , 3 Inch, 300 LB

Name: API 608 Floating Ball Valve, ASTM A216 WCB , 3 Inch, 300 LB
Brand: www.bossealvalves.com
SKU: 3B3RWCB
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 3B3RWCB

Key Specifications / Features

This DN80 floating ball valve is designed in accordance with API 608 standards and features an ISO 5211 mounting pad. The valve has a casting body, 300 LB pressure rating, and 3 inch size with raised face flanges. It is constructed with a WCB body and 316 trim material. The valve is operated by a lever and is suitable for a variety of applications.

API 6D Ball Valve Class 300 LB Ball Valve ASTM A216 WCB Ball Valve Floating Ball Valve API 608 Ball Valve RF Ball Valve ISO 17292 Ball Valve DN80 Ball Valve 3 Inch Ball Valve PN50 Ball Valve

Detail Information

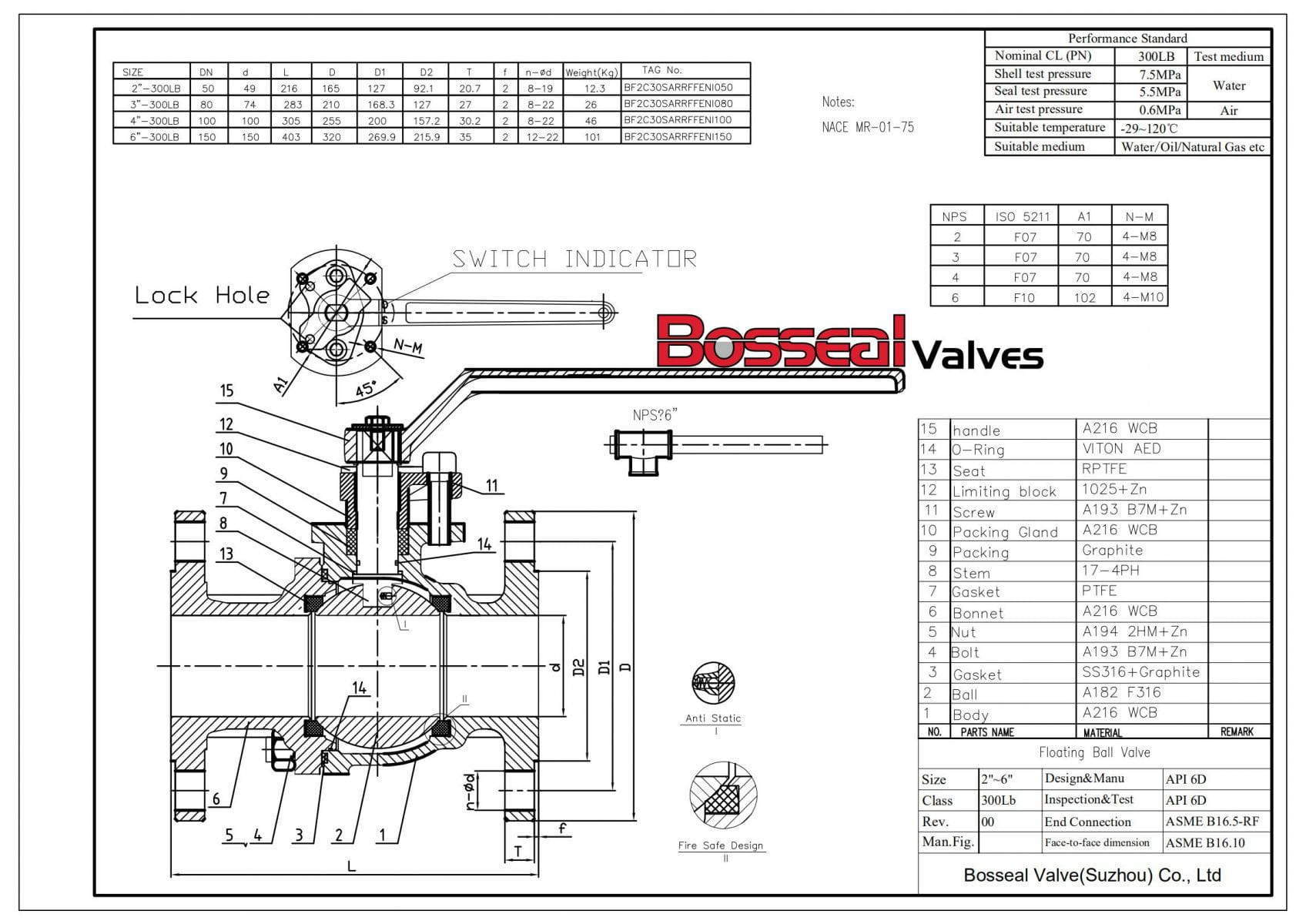

DN80 Floating Ball Valve, API 608, ISO 5211 Mounting Pad, Casting Body, 300 LB, 3 Inch, RF, WCB Body, 316 Trim, Lever Operation

Valve Description:
1812005 Floating Ball Valve 3B3RWCB
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat, O-ring for stem and body joint
Nominal size: 3 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Lockable
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device, ISO 5211 mounting pad

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
