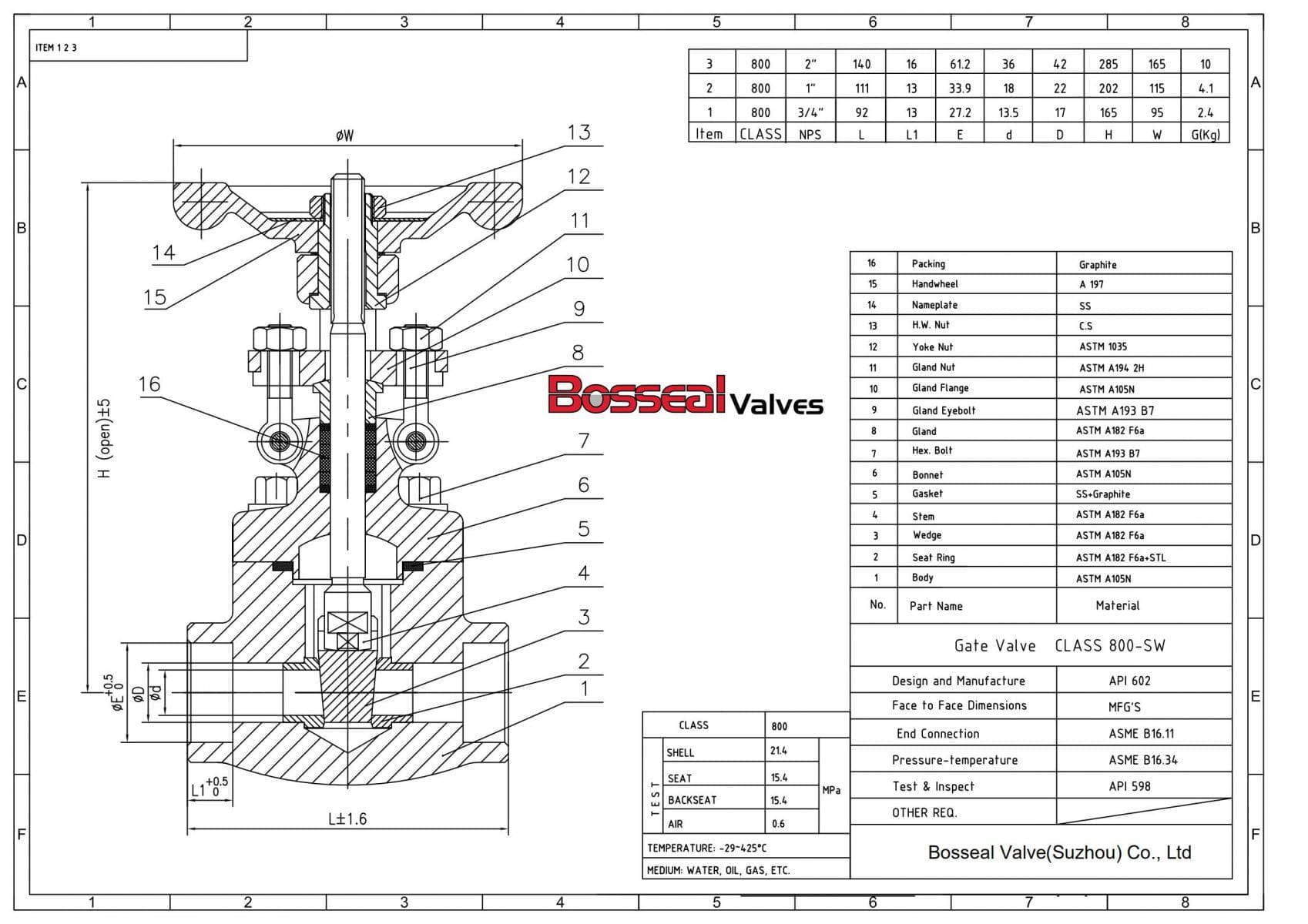

API 602 Forged Gate Valve, 2 Inch, 800 LB, ASTM A105, SW
Model Number: 2G8SA10508
Key Specifications / Features
This 2-inch Class 800 Forged Gate Valve is designed to meet API 602 standards, with a durable A105 body and Trim 8. It features a socket weld (SW) configuration and is operated manually with a handwheel.
Detail Information
2 Inch Class 800 Forged Gate Valve, API 602, A105 Body, Trim 8, SW, Handwheel
Valve Description:
API 602 Forged Gate Valve
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 2 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: 1Cr13+STL, No.8
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
Valve Description:
API 602 Forged Gate Valve
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, OS & Y
Nominal size: 2 Inch
Nominal class: 800 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: 1Cr13+STL, No.8
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid wedge, Adjustable Packing Gland
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
