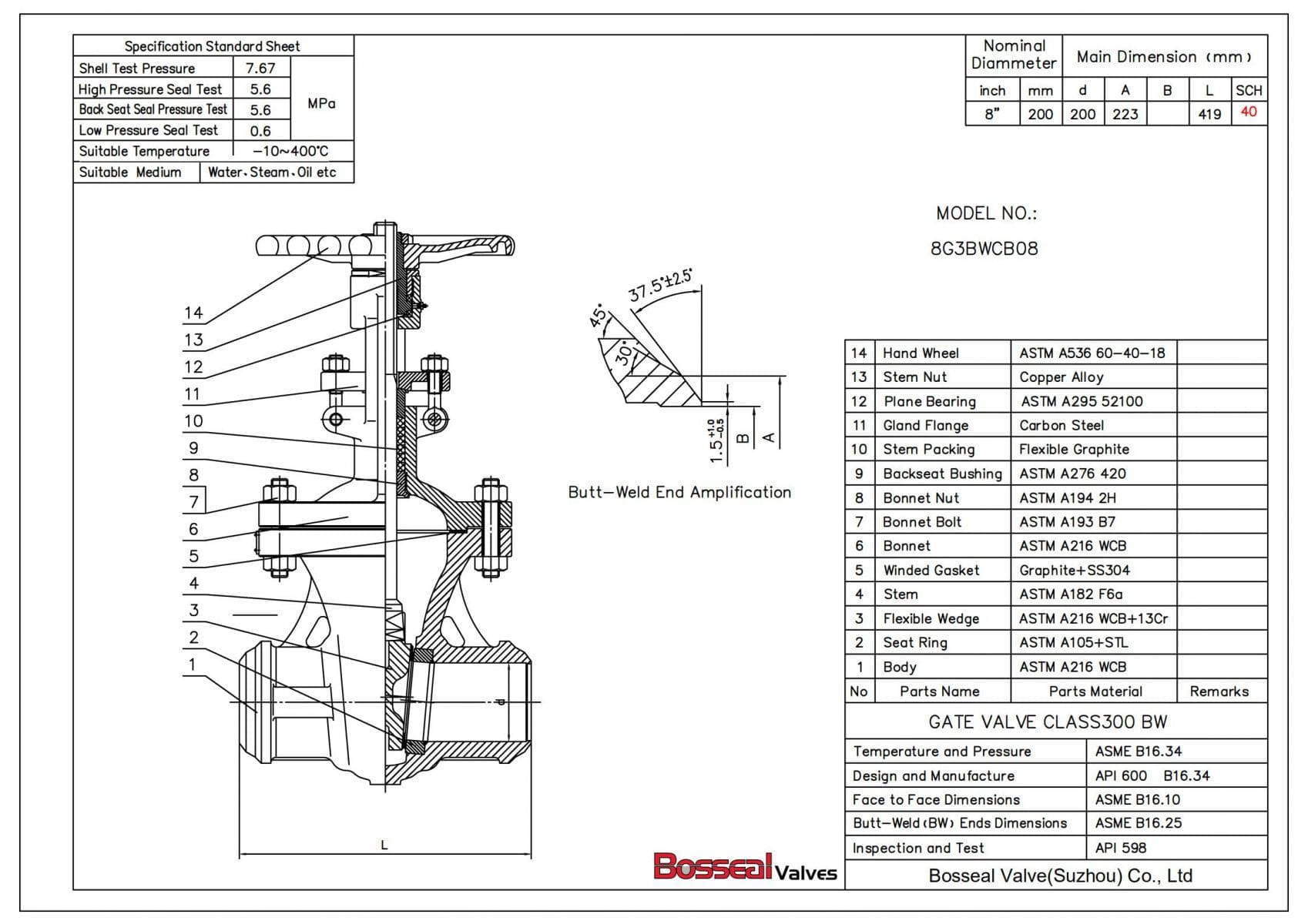

API 600 Wedge Gate Valve, 8 Inch, 300 LB, BW, WCB
Model Number: 8G3RBWCB08
Key Specifications / Features
We Provide Wedge Gate Valves, API 600, Bolted Bonnet, 8 Inch, 300 LB, DN200, PN50, ASTM A216 WCB, Flexible Wedge, Butt Weld End, and Non-rising Handwheel.
Detail Information
Product Item: Wedge Gate Valve
Model No.: 8G3RBWCB08
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 8 Inch
Nominal class: 300 LB
Bore Type: Standard Bore
End Connection: BW End (Butt Weld)
Operation: Handwheel
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 150 - 2500 LB
End connection: BW
Working temperature: -29℃ - +400℃
Operation: Handwheel, Gear, Motor Actuator
Model No.: 8G3RBWCB08
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 8 Inch
Nominal class: 300 LB
Bore Type: Standard Bore
End Connection: BW End (Butt Weld)
Operation: Handwheel
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat
Product Range
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 150 - 2500 LB
End connection: BW
Working temperature: -29℃ - +400℃
Operation: Handwheel, Gear, Motor Actuator
