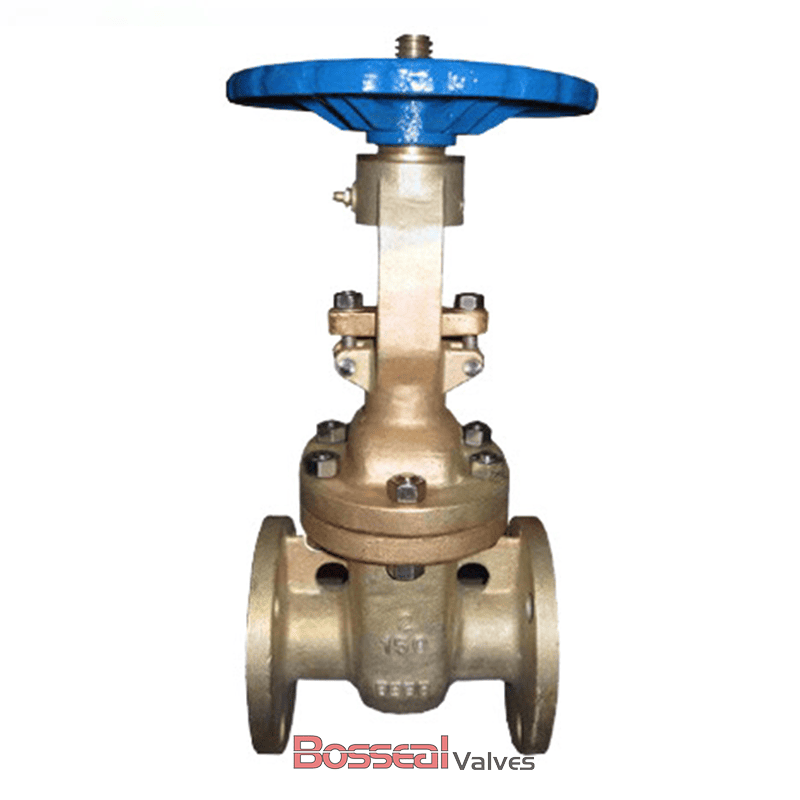

API 600 Non-Rising Gate Valve, C95800, 36 IN, CL150, OS&Y
Key Specifications / Features
We manufacture high-quality non-rising stem gate valves designed under API 600 standards. These valves feature a robust ASTM B148 C95800 aluminum bronze body and trim, ensuring excellent corrosion resistance. Available with flat face (FF) or raised face (RF) flanged ends, they are ideal for various marine and industrial applications. The valves are equipped with an outside screw and yoke (OS\&Y) design, a screwed-in back seat, and are offered in large 36-inch sizes with a Class 150 LB pressure rating. Reliable performance and durability for demanding environments.
Detail Information
Valve Description:
187304018 Aluminum Bronze Gate Valve, OS&Y, Flexible Wedge.
Design Standard: API 600
Body Material: ASTM B148 C95800
Nominal Size: 36 Inch, DN900
Nominal Class: Class 150 LB
Bore Type: Standard Bore(API 600)
End Connection: FF or RF Flanged
Structure: Bolted Bonnet/Pressure Seal Bonnet
Operation: Handwheel/Gear
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features:
Outside Screw and Yoke (OS&Y) for easy visual stem position indication.
Screwed-in back seat for added sealing reliability.
Rising stem for clear valve position visibility.
Non-rising handwheel to save space in compact installations.
Flexible wedge for improved sealing performance and thermal adaptability.
Low-emission design to minimize fugitive emissions.
Aluminum bronze construction for excellent corrosion resistance in seawater service.
Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor
