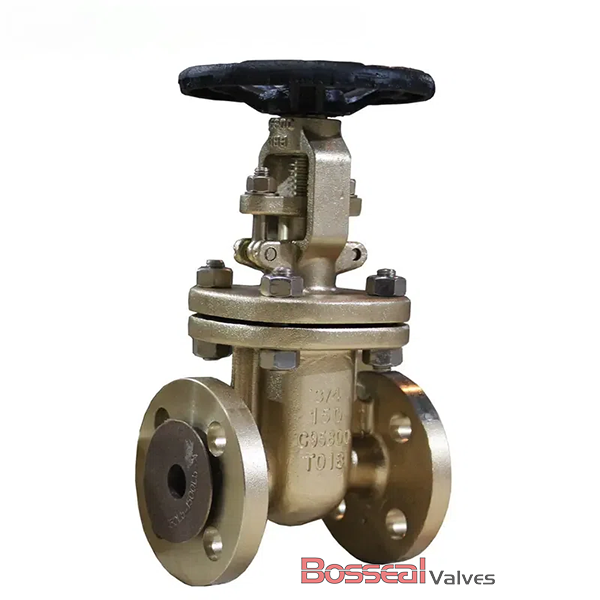

API 600 Gate Valves, Al-bronze, Bolted Bonnet, 2-1/2 Inch

We are a leading manufacturer of bolted bonnet gate valves in China, built to API 600 standards for reliable shutoff performance. Crafted from corrosion-resistant aluminum bronze ASTM B148 C95800, these valves are ideal for demanding marine and industrial applications. Available in 2-1/2 inch size with a Class 150 LB pressure rating, they feature a durable bolted bonnet design for easy maintenance and long service life. Operators can choose between handwheel or gear operation, and the valves are offered with flat face (FF) or raised face (RF) flanged ends for flexible pipeline integration.


Valve Description:
187304002 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Size: 2-1/2 Inch
Nominal Class: Class 150 LB, Class 300 LB
Bore Type: Standard Bore(API 600)
End Connection: FF or RF Flanged
Operation: Handwheel/Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: RF, FF
Working Temperature: -29°C - +200°C
Operation: Handwheel/Gear/Motor
