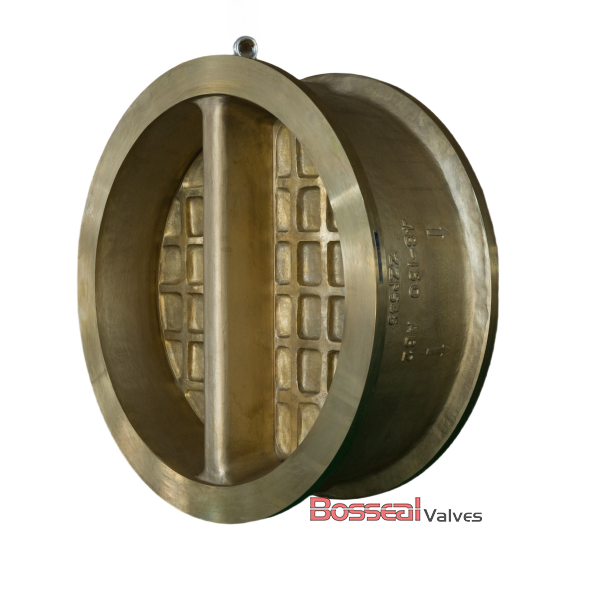

API 594 Dual Plate Check Valve, B148 C95800, 18 IN, CL150 LB
Key Specifications / Features
Our dual plate check valve is expertly crafted to meet API 594 design standards, featuring a robust body and disc made from ASTM B148 C95800 aluminum bronze for superior corrosion resistance. This 18-inch (DN450) valve is rated for Class 150 LB and PN20, ensuring reliable performance in demanding applications. With a non-return valve design, it is available in wafer, lug, and flanged end configurations, offering flexibility for various installation needs. Perfect for industries requiring efficient backflow prevention and durable, long-lasting service.
Detail Information
Valve Description:
187303011 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 18 Inch, DN450
Nominal Class: 150 LB, PN20
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service
Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)
