API 594 Dual Plate Check Valve, Al-bronze, 2 IN, CL150, Wafer
Key Specifications / Features

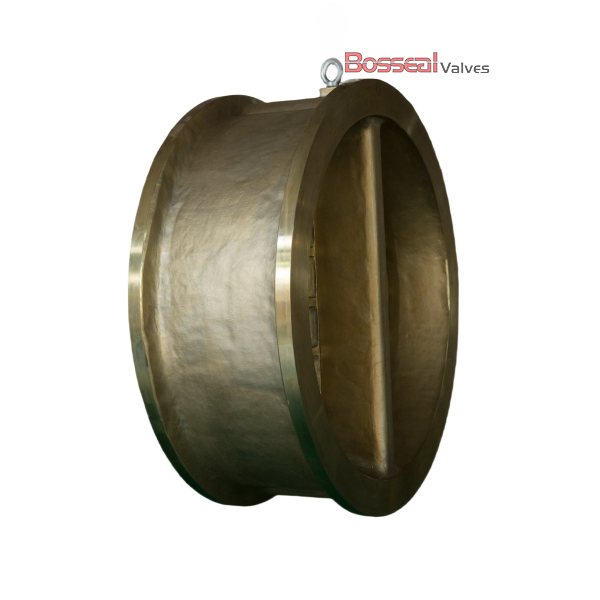

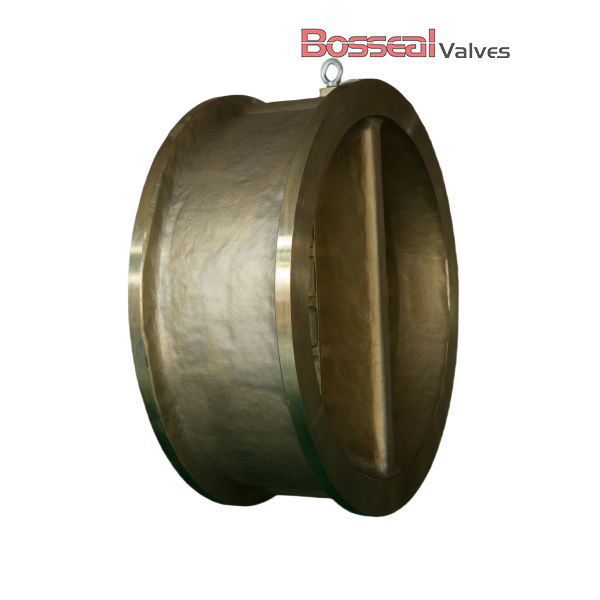

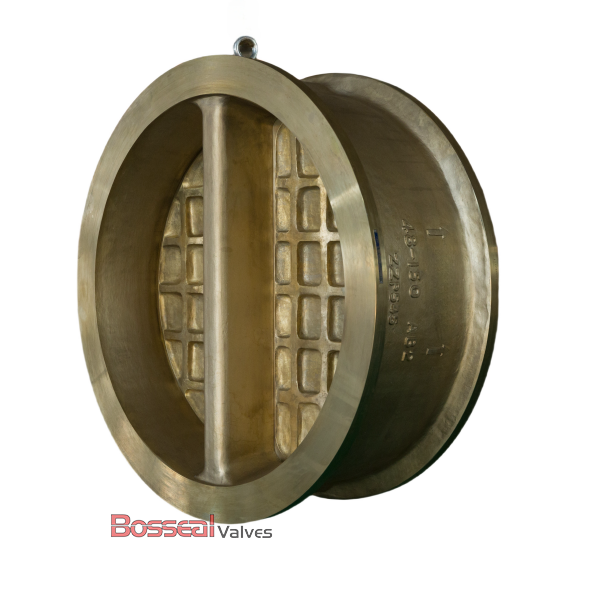

We are a trusted manufacturer of dual plate check valves designed to meet API 594 standards. This 2-inch (DN50) non-return valve features a durable aluminum bronze ASTM B148 C95800 body and disc, ensuring excellent corrosion resistance and long service life. Built with wafer-type ends, it is compact and easy to install between flanges. Rated for Class 150 LB, this valve is ideal for preventing backflow in marine, offshore, and industrial applications. Precision-engineered for reliability and performance, our dual plate check valves offer a dependable flow control solution.
Detail Information
Valve Description:
187303001 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 2 Inch, DN50
Nominal Class: 150 LB, PN20
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service
Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)
