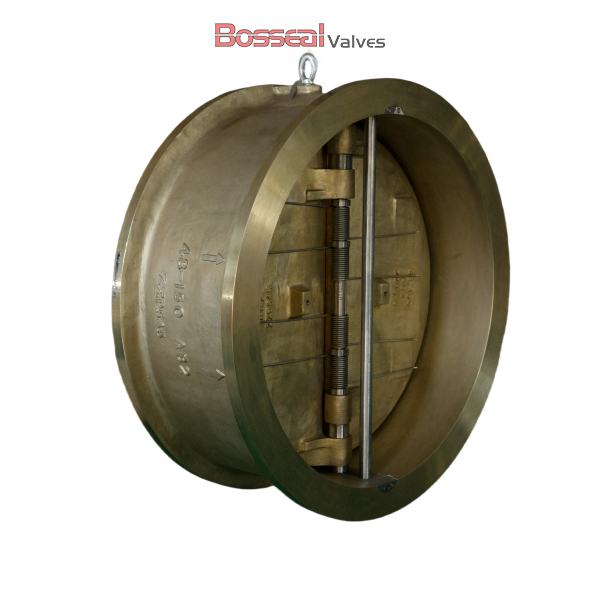

API 594 Dual Plate Check Valve, 18 IN, 150 LB, ASTM A351 CF8
Model Number: 1842028
Key Specifications / Features
We specialize in manufacturing API 594 dual plate check valves, designed as non-return valves. Our 18-inch, Class 150 LB valves are made from ASTM A351 CF8 stainless steel, ensuring durability and resistance to corrosion. These valves feature a compact design and are spring-loaded with wafer flanged ends for easy installation.
Key Features:
Compact Design: Saves space and simplifies installation.
Independent Spring: Enhances performance and reliability.
Optional Seats: Available in both soft and metal seat options to meet various application needs.
Slim Plate Design: Reduces pressure drop and enhances flow efficiency.
Our dual plate check valves are ideal for a variety of industrial applications, providing reliable, long-lasting performance.
Detail Information
API 594 Dual Plate Check Valve, 18 Inch, CL 150 LB, A351 CF8 Body, Wafer, Flanged Ends.
1842028 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Nominal Size: 18 Inch
Nominal Class: Class 150 LB
Body Material: ASTM A351 CF8, ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
End Connection: Wafer, Lug, Flanged-RF, RTJ
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
Valve Description
1842028 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Nominal Size: 18 Inch
Nominal Class: Class 150 LB
Body Material: ASTM A351 CF8, ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
End Connection: Wafer, Lug, Flanged-RF, RTJ
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
