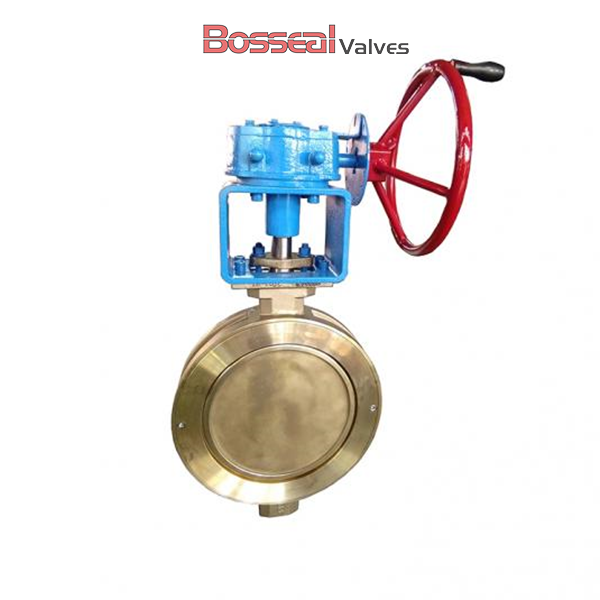

Aluminum Bronze C95800 Butterfly Valve, CL 150, 26 IN, EN 593
Model Number: 1862214
Key Specifications / Features
Our factory specializes in 26-inch wafer butterfly valves engineered for high performance, meeting API 609 Cat B and EN 593 standards. Constructed from ASTM B148 C95800 aluminum bronze, these valves feature a double eccentric design for superior efficiency. Rated for 150 LB, they are equipped with a soft seat for excellent sealing and smooth gear operation for precise control. Designed for reliability and durability, these valves are ideal for demanding industrial applications.
Detail Information
EN 593 High-Performance Butterfly Valve, API 609, 26 Inch/DN650, 150 LB, Double Eccentric.
Design Standard: API 609 Category B, EN 593
Body Material: ASTM B148 C95800, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, Titanium.
Nominal Size: 26 Inch, DN650
Nominal Class: Class 150 LB, PN16
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
End Connection: Lug
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Operation: Gear
Seat: RPTFE, PPL
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Valve Description
1862214 High-Performance Butterfly ValveDesign Standard: API 609 Category B, EN 593
Body Material: ASTM B148 C95800, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, Titanium.
Nominal Size: 26 Inch, DN650
Nominal Class: Class 150 LB, PN16
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
End Connection: Lug
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Operation: Gear
Seat: RPTFE, PPL
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumOperation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
