Aluminum Bronze C95800 Ball Valve, API 6D, 18 Inch, 150 LB

Name: Aluminum Bronze C95800 Ball Valve, API 6D, 18 Inch, 150 LB
SKU: BV-187301011
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

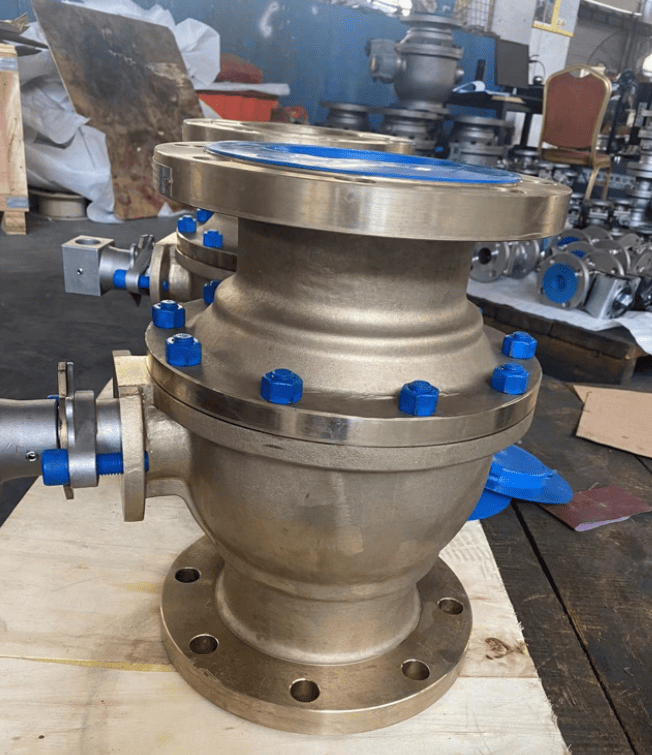

As a leading aluminum bronze ball valve manufacturer in China, we specialize in producing high-quality valves designed to API 6D standards. Our DN450 ball valve features a robust ASTM B148 C95800 body and durable ASTM B150 C63200 trim, ensuring excellent corrosion resistance and longevity. Rated at PN20, it is available with flat face (FF) or raised face (RF) flanged ends for versatile installation. Built for reliable performance in demanding environments, our aluminum bronze ball valves deliver exceptional durability and efficiency.

Request a quote

Detail Information

Valve Description:
187301011 Aluminum Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 18 Inch, DN450
Nominal Class: 150 LB, PN20
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Gear
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminium Bronze for Sea Water Service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: RF, FF
