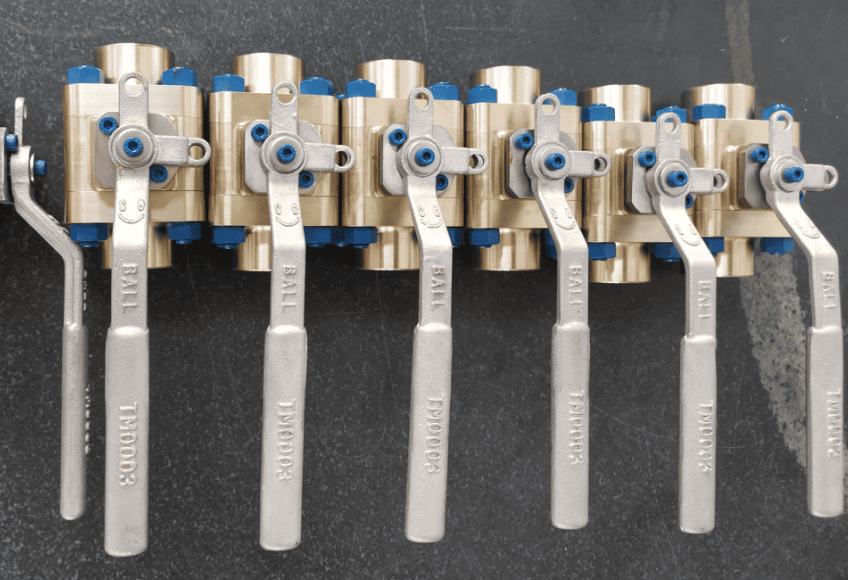

Aluminum Bronze Ball Valve, API 6D, B148 C95800, 2 IN, 150 LB

Name: Aluminum Bronze Ball Valve, API 6D, B148 C95800, 2 IN, 150 LB
SKU: BV-187301001
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading manufacturer of API 6D ball valves in China, we offer a premium product featuring an aluminum bronze ASTM B148 C95800 body and ASTM B150 C63200 trim. This 2-inch ball valve (DN50) is designed to meet Class 150 LB and PN20 standards, with NPT Thread Ends for reliable sealing and easy installation. Known for durability and corrosion resistance, our ball valves are ideal for various industrial applications, providing exceptional performance and long-term reliability. Trust in our expertise for high-quality, precision-engineered valve solutions.

Request a quote

Detail Information

Valve Description:
187301001 Aluminum Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 2 Inch, DN50
Nominal Class: Class 150 LB, PN16, PN20
Bore Type: Full Bore or Reduced Bore
Connection End: NPT Thread Ends
Operation: Lever
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminum Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
