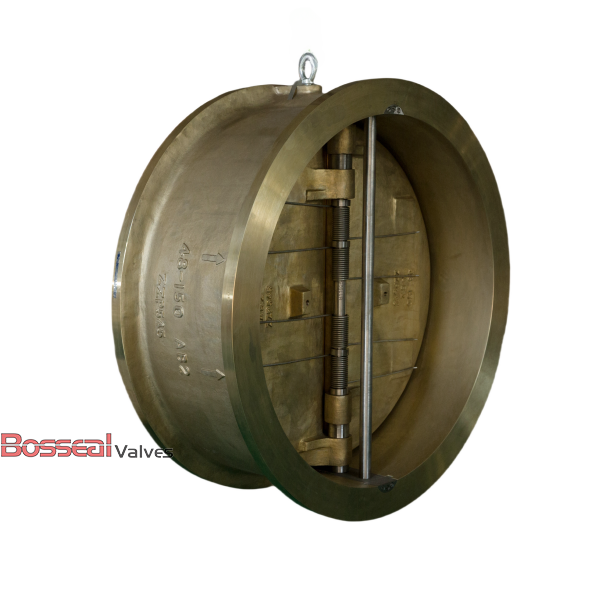

2 Inch Check Valve, Al-bronze B148 C95800, API 594, 300 LB
Key Specifications / Features
As a trusted supplier of aluminum bronze check valves, we offer a high-performance solution designed to API 594 standards. This 2-inch (DN50) valve features a durable aluminum bronze body made from ASTM B148 C95800, ensuring superior corrosion resistance and long-lasting strength. The dual plate structure provides efficient backflow prevention, while the valve is rated for Class 300 LB, guaranteeing reliable performance in demanding conditions. Available with wafer, lug, or flanged end configurations, this valve is perfect for a wide range of industrial applications requiring durable, high-performance check valves.
Detail Information
Valve Description:
187303022 Dual Plate Check Valve
Design Standard: API 594
Structure: Spring-loaded, Dual Plate
Nominal Size: 2 Inch, DN50
Nominal Class: 300 LB
Bore Type: NA
End Connection: Wafer/LUG/Double Flanged
Operation: NA
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design, Aluminium bronze for Sea Water Service
Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer, Lug, RF Flanged, RTJ
Working Temperature: -229°C - +1120°C
Operation: Not Applicable (Manual or actuated available for special request)
