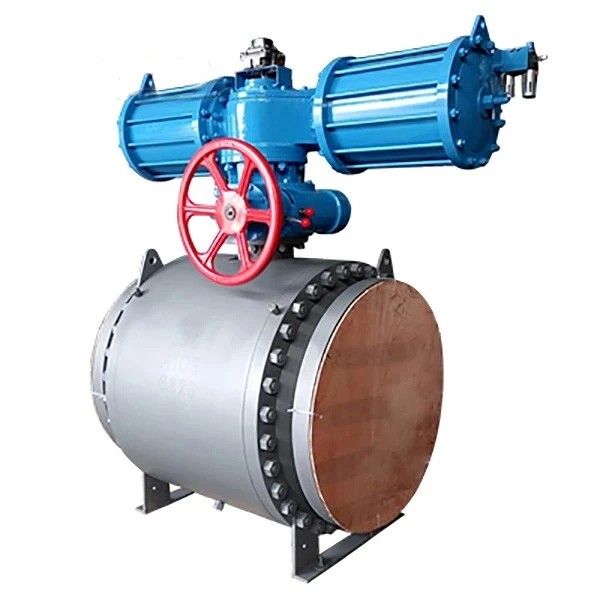

Pneumatic Actuated Ball Valve, ASTM A105, 24 Inch, 150 LB, RF
Key Specifications / Features
China Pneumatic Actuated Ball Valve Company Baltic Offers Pneumatic Actuated Ball Valve, ASTM A105, 24 Inch, Class 150 LB, RF Ends, FF ASME B16.10.
Request a quote
Detail Information
Valve description:
Name: Side entry trunnion mounted ball valve, with pneumatic actuator.
Design: API 6D.
Body: ASTM A105.
Nominal size: 24 Inch.
Nominal class: Class 150.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
Name: Side entry trunnion mounted ball valve, with pneumatic actuator.
Design: API 6D.
Body: ASTM A105.
Nominal size: 24 Inch.
Nominal class: Class 150.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Side Entry Trunnion Mounted Ball Valve | |
| Nominal diameter | 2" - 56" | (DN50-DN1400) |
| Design temp. | -46℃ - 121℃ | |
| Design pressure | class 150 - 2500 | (PN16-PN420) |
| Material | WCB, LCB, CF8M, A105, LF2, F316 | |
| Design standard | API 6D, ISO 17292 | |
| Face to face | ASME B16.10 | EN558 series |
| Connection end | ASME B16.5, ASME B16.25 | EN1092-1 series |
| Test standard | API 598, API 6D | EN 12266-1 |
| Operation | level, worm gear, electric, pneumatic | |
| Application fields | water, petroleum and natural gas | |
| Feature 1 | full bore, reduce bore | |
| Feature 2 | locking device | |
| Feature 3 | anti-blow out stem | |
| Feature 4 | fire safe and Anti-static device | |
| Feature 5 | DBB / double block and bleed | |
| Feature 6 | stem & seats to be equipped injection fitting | |
