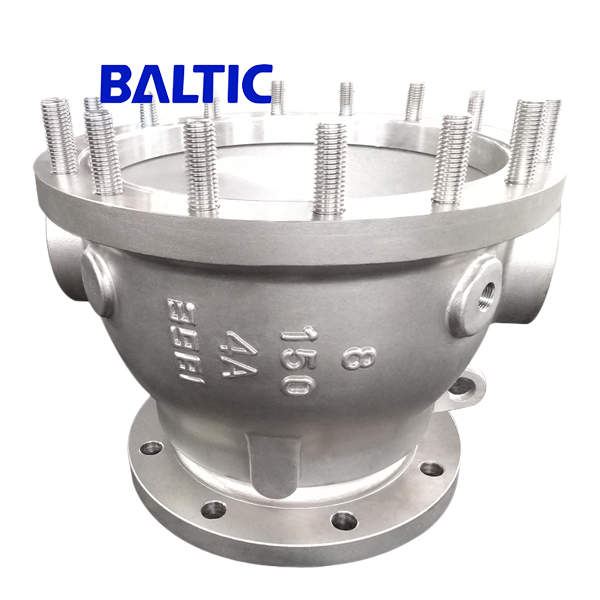

Duplex Steel Ball Valve, ASTM A182 F51, 8 Inch, Class 150 LB, RF
Key Specifications / Features
Duplex Steel Ball Valve Exporter in China: Duplex Steel Trunnion Mounted Ball Valve, ASTM A182 F51, 8 Inch, Class 150 LB, Soft Seated, RF Flanged, API 6D.
Detail Information
Quick Detail:
Duplex Steel, Ball Valve, Soft Seated.
Design: API 6D.
Body: ASTM A182 F51.
Nominal size: 8 Inch.
Nominal class: 150 LB.
End Connection: RF flange.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 60 Inch (DN15 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -46℃ - +200℃.
Duplex Steel, Ball Valve, Soft Seated.
Design: API 6D.
Body: ASTM A182 F51.
Nominal size: 8 Inch.
Nominal class: 150 LB.
End Connection: RF flange.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2 - 60 Inch (DN15 - DN1500).
End connection: BW, Flanged.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -46℃ - +200℃.
