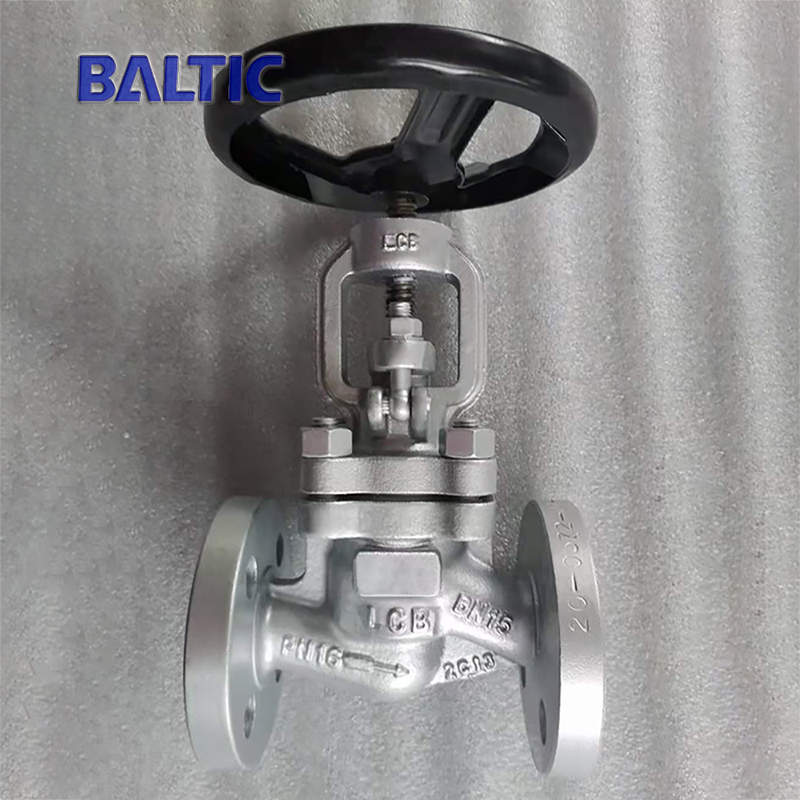

ASTM A352 LCB Globe Valve with RF Flanged Ends, DN25, PN16
Key Specifications / Features
ASTM A352 LCB Globe Valve Manufacturer: S-Type Globe Valve with RF Flanged Ends, ASTM A352 LCB, Full Bore, DN25, PN16, RF Flange, EN 13709, BS 1873, DIN 3356.
Detail Information
Name: Small size DIN Globe Valve with full bore.
Design: EN 13709.
Body: ASTM A352 LCB.
Nominal size: DN25.
Nominal class: PN16.
Connection ends: RF Flanged ends.
Face to face: EN 558-1/line 1.
Test and inspection: EN 12266-1.
Technical parameters and characteristics
Product: Globe valve.
Nominal diameter: NPS 1/2-24 Inch, DN15-DN600.
Design temp.: -29℃-593℃.
Design pressure: Class 150-2500 LB, PN 10-PN420.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A351 CN3MN, ASTM A351 CK3MCUN, ASTM A351 CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500.
Design standard: BS 1873, ASME B16.34, DIN 3356.
Face to Face: ASME B16.10, EN 558 series.
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Test standard: API 598, ISO 5208, EN 12266-1.
Operation: Hand wheel, bevel gear, electric, pneumatic.
Application: Electric power, petroleum refining, petrochemical engineering, offshore oil,
tap water engineering in urban construction, chemical engineering.
Function 1: OS & Y, bolted bonnet, rising stem.
Function 2: Short stroke for easy-quick open/close.
Function 3: For big size and high pressure: Relief cone=internal bypass.
Function 4: Disc sealing could be: Flat sealing, throttle cone=regulating disc.
Function 5: Body seat could be threaded seat or welded seat.
Design: EN 13709.
Body: ASTM A352 LCB.
Nominal size: DN25.
Nominal class: PN16.
Connection ends: RF Flanged ends.
Face to face: EN 558-1/line 1.
Test and inspection: EN 12266-1.
Technical parameters and characteristics
Product: Globe valve.
Nominal diameter: NPS 1/2-24 Inch, DN15-DN600.
Design temp.: -29℃-593℃.
Design pressure: Class 150-2500 LB, PN 10-PN420.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9, ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C, ASTM A351 CN3MN, ASTM A351 CK3MCUN, ASTM A351 CN7M, ASTM A890 4A (CD3MN), ASTM A890 5A (CE3MN), ASTM A890 6A (CD3MWCuN), ASTM B148 C95800, ASTM B148 C95500.
Design standard: BS 1873, ASME B16.34, DIN 3356.
Face to Face: ASME B16.10, EN 558 series.
Connection end: ASME B16.5, ASME B16.25, EN 1092 series.
Test standard: API 598, ISO 5208, EN 12266-1.
Operation: Hand wheel, bevel gear, electric, pneumatic.
Application: Electric power, petroleum refining, petrochemical engineering, offshore oil,
tap water engineering in urban construction, chemical engineering.
Function 1: OS & Y, bolted bonnet, rising stem.
Function 2: Short stroke for easy-quick open/close.
Function 3: For big size and high pressure: Relief cone=internal bypass.
Function 4: Disc sealing could be: Flat sealing, throttle cone=regulating disc.
Function 5: Body seat could be threaded seat or welded seat.
