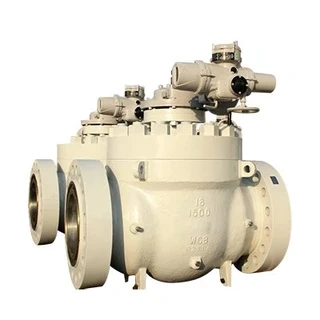

ASTM A216 WCB Top Entry Ball Valve, 12 Inch, Class 600, RF Ends
Model Number: 1-1
Key Specifications / Features
China A216 WCB Top Entry Ball Valve Factory Baltic Supplies ASTM A216 WCB Top Entry Ball Valve, 12 Inch, Class 600, API 6D, RF Ends, FF ASME B16.10.
Detail Information
Valve description:
Name: Top entry ball valve.
Design: API 6D.
Body: ASTM A216 WCB.
Nominal size: 12 Inch.
Nominal class: Class 600.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
Name: Top entry ball valve.
Design: API 6D.
Body: ASTM A216 WCB.
Nominal size: 12 Inch.
Nominal class: Class 600.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Top Entry Ball Valve |
| Nominal diameter | 2" - 56" |
| Design temp. | -46℃ - 121℃ |
| Design pressure | class 150 - 2500 |
| Material | WCB, LCB, CF8M, A105, LF2, F316 |
| Design standard | API 6D, ISO 17292 |
| Face to face | ASME B16.10 |
| Connecting end | ASME B16.5, ASME B16.25 |
| Test standard | API 598, API 6D |
| Operation | manual, worm, pneumatic, electric |
| Application fields | water, petroleum and natural gas |
| Feature 1 | parts such as cover / ball / stem, can be dismounted and installed online to realize the online repair |
| Feature 2 | locking device |
| Feature 3 | anti-blow out stem |
| Feature 4 | fire safe and anti-static design |
| Feature 5 | stem & seats to be equipped injection fittings |
| Feature 6 | DBB / double block and bleed |
