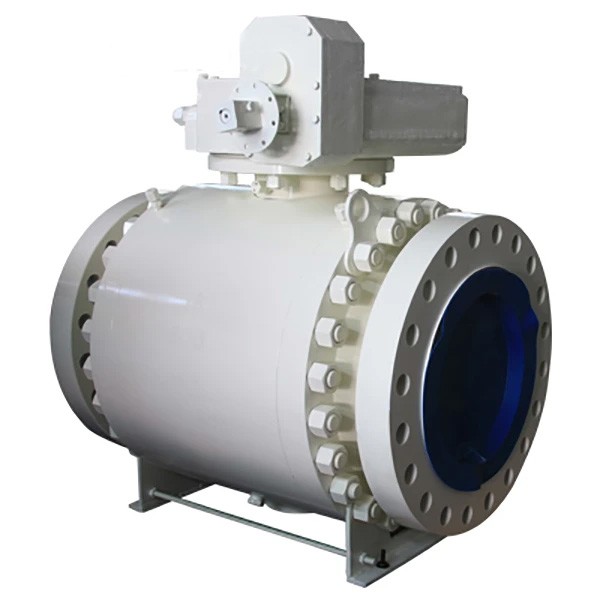

ASTM A105 Metal Seat Ball Valve, 24 Inch, Class 600, API 6D, RF
Key Specifications / Features
China A105 Metal Seat Ball Valve Factory Baltic Offers ASTM A105 Metal Seat Ball Valve, 24 Inch, Class 600, API 6D, RF Flanged Ends, FF ASME B16.10.
Request a quote
Detail Information
Valve description:
Name: Metal seat ball valve.
Design: API 6D.
Body: ASTM A105.
Nominal size: 24 Inch.
Nominal class: Class 600 LB.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
Name: Metal seat ball valve.
Design: API 6D.
Body: ASTM A105.
Nominal size: 24 Inch.
Nominal class: Class 600 LB.
Connection ends: RF flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Metal Seated Ball Valve |
| Nominal diameter | 1/2" - 48" |
| Design temp. | -196℃ - 593℃ |
| Design pressure | class 150 - 2500 |
| Material | A105, LF2, F316, WCB, LCB, CF8M |
| Design standard | API 6D, ASME B16.34 |
| Face to face | ASME B16.10 |
| End | ASME B16.5 / ASME B16.25 |
| Test standard | API 598, ISO 5208 |
| Operation | level, worm gear, electric, pneumatic |
| Application | oil, gas, coal, chemical industries |
| Feature 1 | ball + seat sealing surface coating hardness material |
| Feature 2 | spring support seat ring, stable sealing design |
| Feature 3 | supporting plate (trunnion) construction, light operating torque value, long life |
| Feature 4 | fire safe design |
| Feature 5 | spring Protection |
| Feature 6 | full bore, reduce bore |
