API 6D DBB Ball Valve with Extension Stem, F316L, DN20, PN100, RF
Model Number: 2-3
Key Specifications / Features
China API 6D DBB Ball Valve Manufacturer Offers API 6D Double Block & Bleed Ball Valve with Extension Stem, F316L, DN20, PN100, RF Flanged Ends.
Detail Information
Valve description:

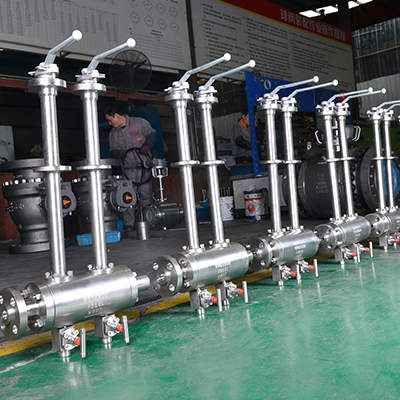

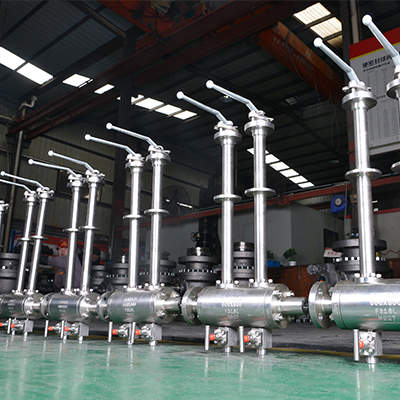

Name: Double block and bleed ball valve, with extension stem.
Design: API 6D.
Body: F316L.
Nominal size: DN20.
Nominal class: PN100.
Connection ends: RF flanged ends.
Face to face: manufacture standard.
Test and inspection: API 598.
Technical parameters and characteristics
Name: Double block and bleed ball valve, with extension stem.
Design: API 6D.
Body: F316L.
Nominal size: DN20.
Nominal class: PN100.
Connection ends: RF flanged ends.
Face to face: manufacture standard.
Test and inspection: API 598.
Technical parameters and characteristics
| Product | Double Block & Bleed Ball Valve |
| Size | 1/2" - 24" |
| Design temp. | -196℃ - 200℃ |
| Design pressure | class 150 - 2500 |
| Material | A105, LF2, F304, F316 |
| Design standard | API 6D, ASME B16.34 |
| Face to face | Manufacturer Standard |
| End | ASME B16.5, ASME B16.25, ASME B16.11 |
| Test standard | API 6D, API 598, ISO 5208 |
| Operation | Lever, Worm Gear |
| Application | petrochemical, chemical, power plant, oil, gas |
| Feature 1 | compact design, desirable performance |
| Feature 2 | full bore, reduce bore |
| Feature 3 | fire safe design |
| Feature 4 | anti-blow out stem design, maintenance could be easy on the pipeline |
| Feature 5 | inlet and outlet closed, block and bleed |
