2CK-1S Series Bevel Gearbox Valve Actuator
Key Specifications / Features
China Bevel Gearbox Valve Actuator Company Provides 2CK-1S Series Bevel Gearbox Valve Actuator, ISO 5210 Flange F20-F40, Output Torque 1400-9000 Nm.
Request a quote
Detail Information
 |
 |
| with flange for connection, ISO F5210 | |
 |
|
| with locking device |
| Type A | Type B |
 |
 |

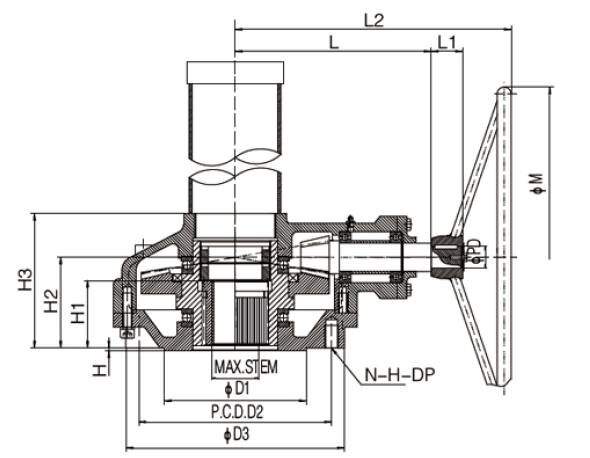

Dimensions: unit: mm
| DIM/MODEL | BASE PART | EXTERNAL PART | INPUT SHAFT PART | Hand Wheel | ||||||||||||
| TYPE | FLANGE SIZE | D1 | P.C.D | 03 | HJ | H 1 | H2 | H3 | L2 | L | L1 | PD | KEY | M | ||
| D2 | N-H-a> | |||||||||||||||
| 2CK2-1S | B | F-20 | 140 | 205 | 8-M16-24 | 250 | 5 | 77 | 81 | 140 | 378 | 313 | 40 | 28 | 8*7 | 450 |
| 2CK3-1S | F-25 | 200 | 254 | 8-M16-24 | 300 | 86 | 88 | 152 | 402 | 337 | 40 | 28 | 8*7 | 500 | ||
| 2CK5-1S | F-30 | 230 | 298 | 8-M20-30 | 350 | 102 | 108 | 181 | 489 | 404 | 40 | 28 | 8*7 | 600 | ||
| 2CK8-1S | F-35 | 260 | 356 | 8-M30-45 | 415 | 132 | 141 | 238 | 544 | 459 | 50 | 38 | 10x8 | 700 | ||
| 2CK10-1S | F-40 | 300 | 406 | 8-M36- 54 | 475 | 8 | 138 | 168 | 270 | 570 | 485 | 50 | 38 | 10x8 | 700 | |
Technical Date Sheet:
| DIM/MODEL | Gear Ratio |
Flange Size | Max Stem Diameter | Max Thrust Capacity | Max Output Torque | M.A | Weight | |
| input | output | |||||||
| m m | KN | Nm | N m | 士10 % | Kg | |||
| 2CK2 -1 S | 1 3.6:1 | F-20 | 70 | 190 | 155 | 1400 | 9.2 | 62 |
| 2CK3-1S | 18:1 | F-25 | 78 | 268 | 165 | 2000 | 12.2 | 78 |
| 2CK5-1S | 23:1 | F-30 | 95 | 308 | 225 | 3500 | 15.6 | 115 |
| 2CK8-1S | 37.9:1 | F-35 | 110 | 377 | 200 | 5000 | 25.8 | 205 |
| 2CK10-1S | 42.8:1 | F-40 | 130 | 427 | 310 | 9000 | 29 | 250 |
| No. | Description | Material | Material code |
| 1 | Housing | Carbon Steel | ASTM A216 WCB |
| 2 | Base | Carbon Steel | ASTM A216 WCB |
| 3 | Drive Sleeve | Aluminium Bronze | ASTM C61900 |
| 4 | Bevel Gear | Carbon Steel | ASTM A29M-1045 |
| 5 | Pinion Gear | Carbon Steel | ASTM A29M-1045 |
| 6 | Support Housing | Carbon Steel | ASTM A216 WCB |
| 7 | Support Cover | Carbon Steel | ASTM A216 WCB |
| 8 | Reduction Gear | Carbon Steel | ASTM A29M-1045 |
| 9 | cover | Carbon Steel | ASTM A216 WCB |
| 10 | Bolt | Carbon Steel | ASTM A29M-1045 |
| 11 | Bolt | Carbon Steel | ASTM A29M-1045 |
| 12 | Bearing | Alloy Steel | ASTM A295-52100 |
| 13 | Bearing | Alloy Steel | ASTM A295-52100 |
| 14 | O-Ring | Rubber | NBR |
| 15 | Eye Bolt | Carbon Steel | ASTM A29M-1020 |
| 16 | Bearing | Alloy Steel | ASTM A295-52100 |
| 17 | Collar | Carbon Steel | ASTM A29M-1020 |
| 18 | Snap Ring | Carbon Steel | ASTM A29-1566 |
| 19 | Bearing | Alloy Steel | ASTM A295-52100 |
| 20 | Bolt | Carbon Steel | ASTM A29M-1045 |
| 21 | Bearing | Alloy Steel | ASTM A295-52100 |
| 22 | Snap Ring | Carbon Steel | ASTM A29-1566 |
| 23 | Bearing | Alloy Steel | ASTM A295-52100 |
| 24 | Bearing | Alloy Steel | ASTM A295-52100 |
| 25 | O-Ring | Rubber | NBR |
| 26 | Bolt | Carbon Steel | ASTM A29M-1045 |
| 27 | Grease Nipple | Carbon Steel | ASTM A29M-1020 |
