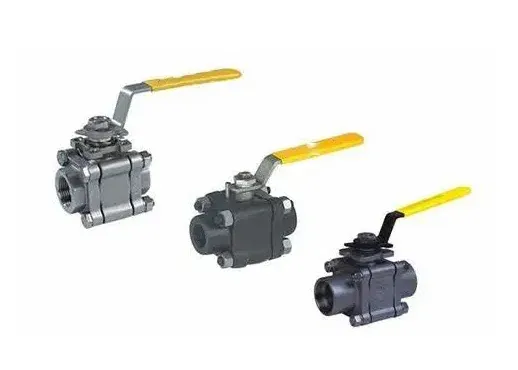

Forged Steel Ball Valves: A Reliable Choice for High-Pressure Applications

Introduction

Forged steel ball valves are essential components in modern pipeline systems, especially in high-pressure, high-temperature, and corrosive environments. These valves are made through a process known as forging, where metal is shaped under high pressure to improve its mechanical properties, refine its grain structure, and increase its strength and durability. Unlike cast valves, forged steel valves are denser and less prone to defects such as porosity or shrinkage.

Ball valves, in general, are known for their efficient flow control, minimal pressure drop, and tight sealing capabilities. When forged steel is used as the body material, the valve becomes even more robust and reliable—ideal for demanding applications across the oil & gas, chemical, power generation, and petrochemical industries.

In this article, we’ll explore the unique advantages of forged steel as a material, examine the design features and classifications of forged steel ball valves, and highlight where these high-performance valves are best utilized.

What is Forged Steel?

Forged steel is produced by deforming metal under high pressure, usually using mechanical or hydraulic hammers or presses. The process can be done hot or cold, but hot forging is more common for industrial components. This method aligns the metal’s grain flow, reducing internal voids and resulting in a material that is tougher, stronger, and more fatigue-resistant than cast or machined metal.

This strength and durability are especially critical for industrial valves, which are frequently exposed to high pressures, temperature extremes, and aggressive media.

Key Advantages of Forged Steel Ball Valves

Forged steel ball valves provide multiple advantages that set them apart from cast or fabricated alternatives. These include:

1. Superior Strength and Toughness

Due to the forging process, the steel becomes denser and more uniform. This translates into greater mechanical strength and toughness. These valves can withstand higher internal pressures and are less likely to fracture under sudden stress. This characteristic is essential in systems that handle pressurized steam, gas, or corrosive liquids.

2. Exceptional Durability

Forged steel valves are built to last. The enhanced grain structure ensures that the valves can operate reliably for years—even in challenging operating environments. They are less susceptible to damage from vibration, pressure surges, or mechanical wear, resulting in lower maintenance and replacement costs.

3. High Corrosion Resistance

Many forged steel ball valves are made from alloys like ASTM A105, ASTM A182 F304/F316, or other grades that offer excellent corrosion resistance. This makes them suitable for use in chemical processing plants, water treatment facilities, and offshore oil rigs where exposure to aggressive media is frequent.

4. Heat Resistance

Forged steel valves maintain their integrity at high temperatures, making them an excellent choice for thermal power stations, boilers, refineries, and other facilities where heat is a constant factor. The material resists deformation and retains its mechanical properties even when exposed to elevated temperatures.

5. Leak-Tight Performance

Ball valves are known for their excellent shut-off capability. The forging process enhances the valve’s dimensional precision, helping ensure tight sealing between the ball and seats. This prevents leaks, which is critical in systems transporting toxic or hazardous fluids.

Applications of Forged Steel Ball Valves

Thanks to their exceptional properties, forged steel ball valves are used across a variety of industries. Some key sectors include:

Oil and Gas Industry

Forged steel ball valves are widely used in upstream, midstream, and downstream oil and gas operations. They can handle high pressures found in extraction wells, as well as the corrosive environments of refining and petrochemical processing.

Chemical and Petrochemical Plants

In chemical processing facilities, where corrosion, pressure, and temperature extremes are common, forged steel valves provide the durability and resistance needed to maintain safety and efficiency.

Power Generation

In both fossil fuel and nuclear power plants, forged steel ball valves play a crucial role in steam, feedwater, and cooling systems. Their ability to withstand high temperatures and pressures ensures uninterrupted service.

Water and Wastewater Treatment

While corrosion resistance is key in these environments, the added strength of forged valves makes them ideal for high-pressure applications in water purification and industrial wastewater systems.

Marine and Offshore Engineering

Forged steel valves are preferred in marine settings for their corrosion resistance and ability to perform under high pressure, such as in ballast systems, desalination units, and fuel transfer operations.

Design Features of Forged Steel Ball Valves

Forged steel ball valves come in a variety of designs and configurations to suit different system requirements. Some common design considerations include:

1. Body Construction

One-Piece Body: Simplified design, often used in compact, low-pressure systems.

Two-Piece Body: Allows for easy maintenance and internal access.

Three-Piece Body: Designed for high-maintenance environments; the center section can be removed without disconnecting the entire valve from the pipeline.

2. Ball Type

Floating Ball: Used in smaller sizes and low to medium pressures. The ball floats slightly downstream and presses against the seat to form a seal.

Trunnion-Mounted Ball: Used in larger valves and high-pressure systems. The ball is supported by trunnions and requires less torque to operate.

3. End Connections

Threaded (NPT): Typically used for smaller valves in low-pressure systems.

Socket Weld: Offers strong, leak-proof connections for high-pressure services.

Butt Weld: Used for permanent installations in critical systems.

Flanged Ends: Common in larger industrial systems for easy maintenance and installation.

4. Operation Methods

Manual (Lever or Gear): Suitable for simple on/off functions in smaller valves.

Electric, Pneumatic, or Hydraulic Actuators: Ideal for automated systems and remote control in large industrial plants.

Material Standards and Class Ratings

Forged steel ball valves are manufactured according to international standards to ensure quality, safety, and performance. Some common material specifications and standards include:

ASTM A105: Carbon steel, commonly used for pressure systems at ambient or higher temperatures.

ASTM A182 F304/F316: Austenitic stainless steel, ideal for corrosive environments.

ASTM A350 LF2: Low-temperature carbon steel for cryogenic and sub-zero applications.

API 6D / API 608: Standards for pipeline and general-purpose ball valves.

ASME B16.34: Covers design, materials, and pressure-temperature ratings.

MSS SP-72/SP-110: Valve standards for ball valves with threaded or socket weld ends.

Pressure classes typically range from Class 150 to Class 2500, with corresponding pressure-temperature ratings depending on the material used.

Common Valve Sizes and Pressure Ratings

Forged steel ball valves are typically available in sizes from ½ inch to 12 inches and are suitable for pressure classes including:

Class 150

Class 300

Class 600

Class 800

Class 1500

Class 2500

These valves can also be customized according to client specifications, including special coatings, trim materials, and end connections for specific applications.

Forged vs. Cast Steel Ball Valves

While both forged and cast steel ball valves serve similar functions, they differ significantly in terms of performance and reliability:

Forged steel valves are preferred for critical services where strength, reliability, and longevity are essential, while cast valves are more suitable for general-purpose applications with less demanding conditions.

Innovations in Forged Ball Valve Manufacturing

Modern manufacturing technologies have greatly improved the quality and performance of forged steel ball valves. CNC machining, precision forging, and advanced non-destructive testing methods ensure high dimensional accuracy, perfect sealing surfaces, and defect-free internal structures.

Additionally, developments in valve seat materials—such as PTFE, RPTFE, Devlon, or metal-seated options—allow for better performance in specialized environments such as abrasive slurries, high-cycle operations, or cryogenic temperatures.

Conclusion

Forged steel ball valves represent the pinnacle of durability and performance in valve engineering. With their superior mechanical properties, excellent sealing performance, and resistance to pressure, temperature, and corrosion, these valves are a dependable solution for the most demanding industrial applications.

Whether you're operating a chemical processing plant, an offshore oil rig, or a power generation facility, choosing a forged steel ball valve ensures a long service life, minimal downtime, and optimal flow control.

For industries that demand the highest standards in safety, efficiency, and reliability, forged steel ball valves remain the valve of choice.
