How Do Cylinder Locks Work?

Introduction

In an era where security is paramount, the humble cylinder lock remains one of the most widely used, trusted, and adaptable locking mechanisms in homes, businesses, and institutions around the world. Its enduring popularity lies in a combination of simple yet ingenious engineering and the flexibility it offers for installation, maintenance, and upgrading.

While many people use cylinder locks every day — turning a key in a front door, locking an office, or securing an apartment — few truly understand how these compact devices work or what makes them so effective against unauthorized entry. By exploring the internal workings, key types, modern security enhancements, and practical installation tips, this guide aims to demystify the cylinder lock and highlight its crucial role in our everyday safety.

What Is a Cylinder Lock?

A cylinder lock, sometimes called a pin tumbler lock, key cylinder lock, or door lock cylinder, is defined by its core component: a cylindrical plug or core that houses the locking mechanism. The key is inserted into this cylinder, aligning a precise series of pins that allow the plug to turn.

This design stands out for a simple reason: the lock can be rekeyed or replaced without removing the entire hardware from the door. This means homeowners or building managers can update security credentials quickly and affordably, a major advantage over integrated or welded locking systems.

From residential doors and commercial offices to high-security facilities, the cylinder lock’s balance of cost-effectiveness, ease of use, and reliability has made it the backbone of door security for well over a century.

How Do Cylinder Locks Actually Work?

At first glance, turning a key may seem like a straightforward action — but inside the cylinder lock, a clever sequence of engineering steps takes place every time you unlock your door.

1. The Pin Tumbler Mechanism

The traditional cylinder lock works on a pin tumbler system, originally invented by Linus Yale Sr. and later refined by Linus Yale Jr. in the 19th century. Here’s how it functions:

Key Insertion: When you insert the key, the unique cuts or grooves on the key blade push up individual key pins inside the lock cylinder.

Aligning the Pins: Each key pin rests on top of a driver pin. Together, they stack inside small vertical chambers drilled into the plug and the surrounding shell.

Finding the Shear Line: For the cylinder plug to rotate, the gap between the key pins and driver pins must align exactly at the shear line — the boundary where the rotating plug meets the stationary outer shell.

Turning the Plug: When all pins are aligned correctly, the plug can rotate freely, engaging or disengaging the locking bolt.

If any pin remains misaligned — as it would with the wrong key — the plug stays blocked by the protruding pins, and the lock stays secure.

Anatomy of a Modern Cylinder Lock

Though the pin tumbler design is the foundation, modern cylinder locks have evolved in complexity to resist modern threats like picking, bumping, and drilling.

Key components include:

Plug/Core: The rotating part that houses the keyway and pins.

Housing/Shell: The outer casing that holds the plug in place.

Pins and Springs: Varying lengths of key pins and driver pins, pushed down by tiny springs.

Cam or Tailpiece: A small rotating arm at the back that retracts or extends the bolt when the plug turns.

Anti-Bump Pins & Security Pins: Modern versions often add mushroom or spool-shaped pins to thwart lock bumping or picking attempts.

Rekeyable Cores: Many cylinder locks today allow the core to be swapped out without replacing the full lock body, extending the system’s lifespan.

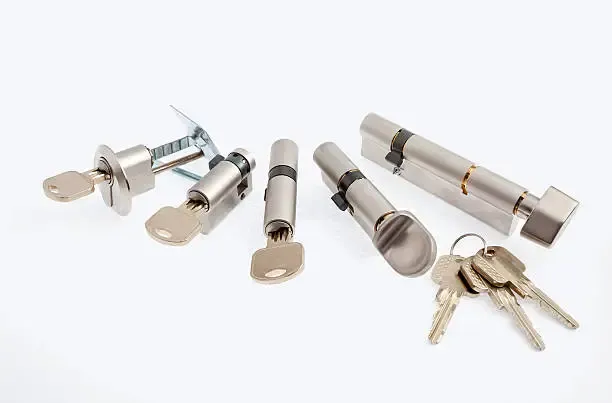

Types of Cylinder Locks: Finding the Right Fit

Knowing how cylinder locks work is only half the story — understanding the different configurations helps you choose the right lock for your specific needs. Let’s break down the most common types.

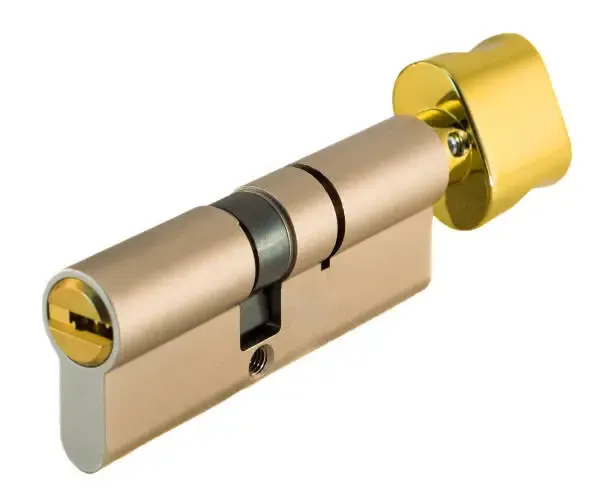

1. Profile Cylinder Locks

Widely used across Europe and increasingly popular in North America, profile cylinders are recognizable by their distinctive shape — often an oval or a “teardrop” design.

Key Features:

Designed for euro-profile door hardware.

Often found in uPVC and aluminum doors.

Easy to replace or rekey.

Includes a central cam mechanism to connect the inside and outside locking functions.

One caveat: they’re typically not suited for storm doors and may require specific door thicknesses.

2. Mortise Cylinder Locks

A favorite in commercial and older residential buildings, mortise cylinders are round and designed to screw into a mortise lock body fitted within a pocket cut into the door.

Highlights:

Highly durable and secure.

Works well with heavy-duty doors.

Replaceable or interchangeable cores are available.

May require spacers to align the cylinder flush with the lock body.

3. Rim Cylinder Locks

Commonly used in exit devices and night latches, rim cylinders are similar to mortise cylinders but include a tailpiece that extends through the door to engage with the locking mechanism.

Key Points:

Often found on surface-mounted locks.

Simple to install and replace.

Great for supplementary security (e.g., back doors or gates).

4. Deadbolt Cylinder Locks

Deadbolts are synonymous with robust security, and their cylinder cores are integral to that reputation. Deadbolt cylinder locks come in single-cylinder or double-cylinder versions.

Single-Cylinder Deadbolt: Key operation outside; thumb turn inside.

Double-Cylinder Deadbolt: Key required on both sides — adding security but potentially restricting quick egress in an emergency.

Deadbolts remain one of the most effective defenses against forced entry.

5. Key-in-Knob and Key-in-Lever Cylinder Locks

These cylinders are built into standard knob or lever sets — the familiar locks found on interior doors, bedrooms, or office doors.

Good to Know:

Usually less robust than deadbolts.

Not interchangeable with other cylinder types.

Suitable for areas with lower security needs or as a secondary lock.

Modern Security Features: Staying Ahead of Intruders

The traditional pin tumbler system, while ingenious, is vulnerable to certain manipulation methods. To counter these threats, manufacturers continue to evolve cylinder locks with extra layers of protection:

Anti-Pick Pins: Specially shaped pins make it harder for lock-picking tools to manipulate them.

Anti-Bump Designs: Reinforced pins and springs resist the rapid impact used in bump key attacks.

Anti-Drill Plates: Hardened steel inserts prevent drilling through the lock body to disable pins.

Key Control Systems: Patented keyways prevent unauthorized duplication of keys.

When investing in a cylinder lock, especially for exterior doors, it’s worth checking for these enhancements — or opting for models that meet standards like ANSI Grade 1 or BS EN 1303.

How to Install a Cylinder Lock: A Practical Walkthrough

One of the biggest perks of cylinder locks is how relatively straightforward they are to install or replace. Here’s a general guide:

Tools You’ll Need:

Cordless drill or driver

Phillips and flathead screwdrivers

The new cylinder lock assembly

Step-by-Step Process:

Remove the Door Handle:

Locate the small release hole under the handle.

Insert the removal pin or a small tool to press the release catch.

Pull off the handle.

Unscrew the Faceplate:

Use a flathead screwdriver to gently pry up the gasket or faceplate behind the handle.

Access the Fixing Screws:

Use a cross (Phillips) screwdriver to loosen the screws securing the cylinder in place.

Extract the Old Cylinder:

From the opposite side, gently slide out the cylinder once the screws are removed.

Remove the Bolt:

Use a screwdriver or drill to remove the latch bolt assembly if needed.

Install the New Cylinder:

Slide the new cylinder into place, ensuring it aligns with the latch mechanism.

Secure it with the fixing screws.

Reattach the faceplate and door handle.

Test the Lock:

Insert the key and ensure smooth operation. Check both locking and unlocking functions from each side.

Pro tip: Always check the manufacturer’s instructions, as some locks have unique steps or security features that require extra attention during installation.

Rekeying vs. Replacing: What Should You Do?

One of the top advantages of cylinder locks is their rekeyability. If you lose a key or move into a new property, you often don’t need to replace the whole lock — a locksmith can simply swap out the pins inside the cylinder to match a new key.

Rekeying is cost-effective and secure. However, if your lock is old, damaged, or lacking modern security features like anti-bump protection, it may be worth upgrading the entire cylinder for peace of mind.

Future Trends: Smart Cylinders and Electronic Integration

The world of locks is evolving, and cylinder locks are no exception. Many manufacturers now offer smart cylinders that combine traditional mechanical pin tumbler designs with electronic controls.

Examples include:

Bluetooth or Wi-Fi-enabled cylinders that unlock via smartphone.

Keypad or biometric options integrated into cylinder hardware.

Hybrid systems with traditional keys for backup.

These innovations offer enhanced convenience and the ability to monitor access logs, grant temporary keys, or integrate with home automation systems — all while retaining the dependable pin tumbler mechanism as a fail-safe.

Conclusion

From their ingenious internal mechanics to their adaptability and modern security upgrades, cylinder locks remain a cornerstone of door security across the globe. Whether protecting a family home, a small business, or a large commercial facility, these locks deliver a balance of simplicity, cost-efficiency, and effectiveness that few other systems can match.

As threats evolve, so too do cylinder locks — integrating advanced anti-tamper features, smart technology, and convenient rekeying capabilities that keep them ahead of modern intruders. Next time you turn a key in your front door, you’ll know just how much precision engineering is at work, keeping you and your valuables safe, one pin at a time.
