BS 6364 Cryogenic Gate Valve, 1/2-2 Inch, Class 150-800 LB

Dec 13, 2023

Design construction: API 602, ASME B16.34, BS 5352, BS 6364
Testing: API 598
Face to face: ASME B16.10
Size: 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch
DN15, DN20, DN25, DN32, DN40, DN50
Class: 150 LB, 300LB, 400 LB, 600 LB, 800 LB, PN20, PN50, PN63, PN100, PN130
Flanges: ASME B16.5
Spiral wound gasket
Integral backseat
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Welded body- bonnet joint also available

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.

Ratings: stainless steel A182- F316
- class 150 = 275 psig @ 100°F 19 bar + 38°C
- class 300 = 720 psig @ 100°F 49 bar + 38°C

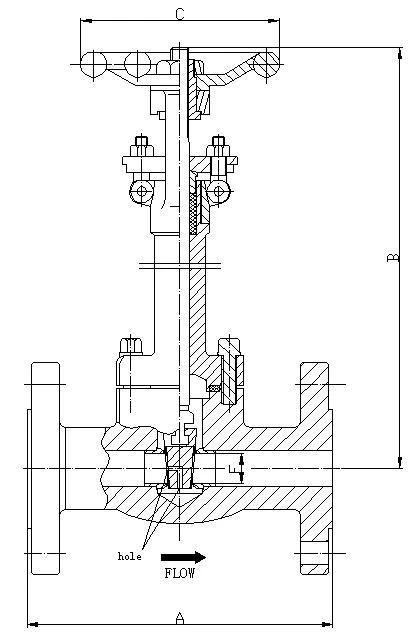

150-800 LB	NPS	(in)	1/2	3/4	1	11/4	11/2	2
	DN	mm	15	20	25	32	40	50
	D		13	18	24	29	36.5	46.5
	L	SW:NPT OR RC	92	111	120	120	140	178
		CL150;CL300	140	152	165	178	190	216
		CL600	165	190	216	229	241	292
		PN1.6-4.0	130	150	160	180	200	250
		PN6.4-10.0	170	190	210	230	250	250
	H		333	360	407	475	475	551
	W		125	125	160	160	180	200
	KG		7.1	9.4	13.5	15.0	17.8	28.0
	KG	CL300/CL600	7.0/8.0	9.4/11.1	12.5/13.4	19.8/21.5	20.1/22.6	24.0/27.0
